Texa AP51 – SWM Euro 4 Cable

Texa AP51 – SWM Cable

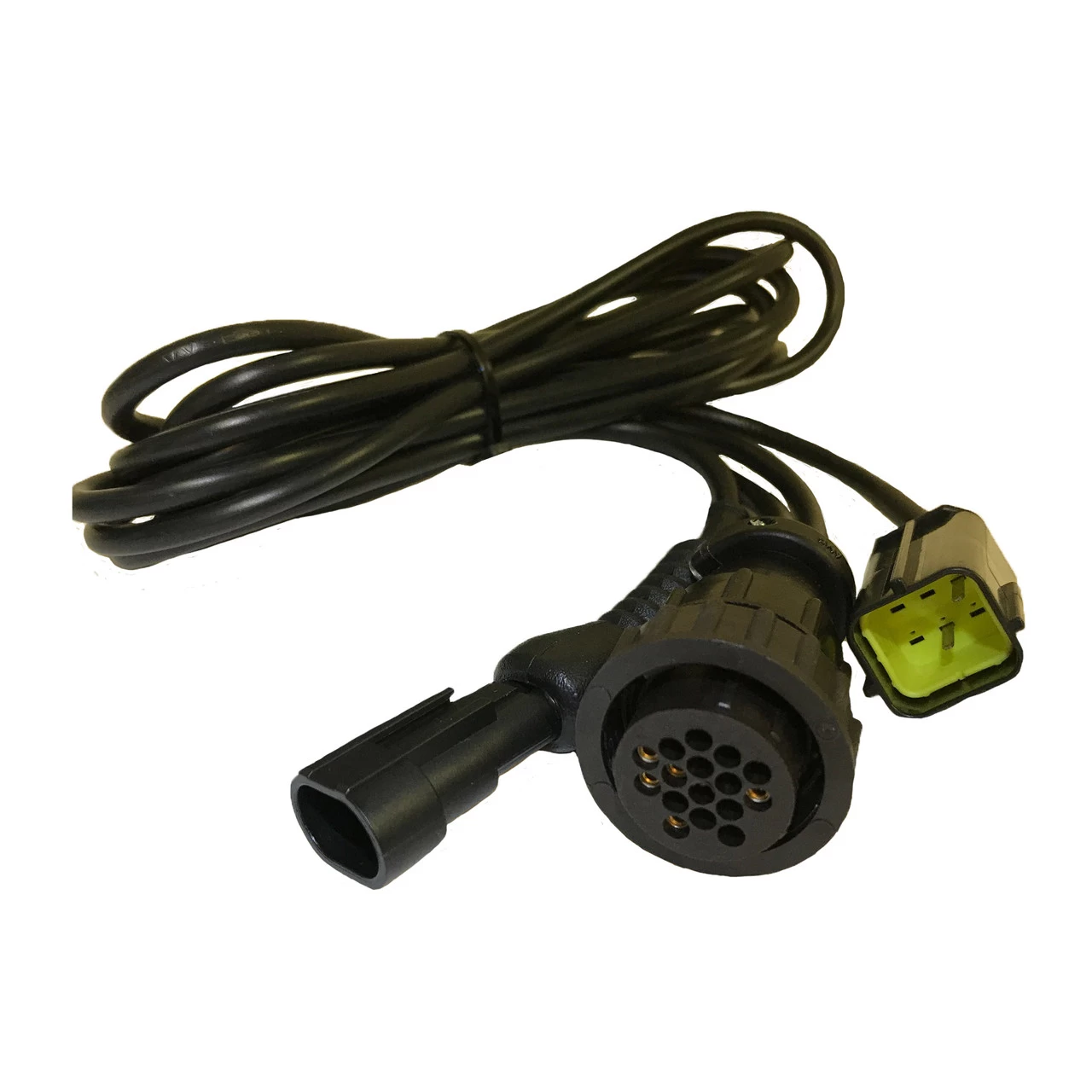

SWM diagnostic cable for diagnosis and dealer reprogramming of SWM Euro 4 motorcycles.

The cable is made up of two connectors: one 6-way (line) and one 2-way (power supply).

In order to carry out diagnosis/reprogramming, both connectors must be connected to their respective sockets in the vehicle. Such sockets are not always located near each other. The power socket, with a cap, is generally near the battery or between the headlight and the dashboard.

NOTE1: Some model series are not provided with the 2-way socket for power supply. In this case, to power the tool and ensure the diagnosis/reprogramming, the 2-way connector of cable 3151/AP51 must be connected to the cable 3151/AP55 and the clamps of the latter to the vehicle battery.
We recommend always checking the connection indications provided in the software.

NOTE2: The cable does not manage the diagnosis of the ABS system, for which you must use the cable 3151/AP07 and the end sleeve 7.

Manufacturer’s part number: 3907937
