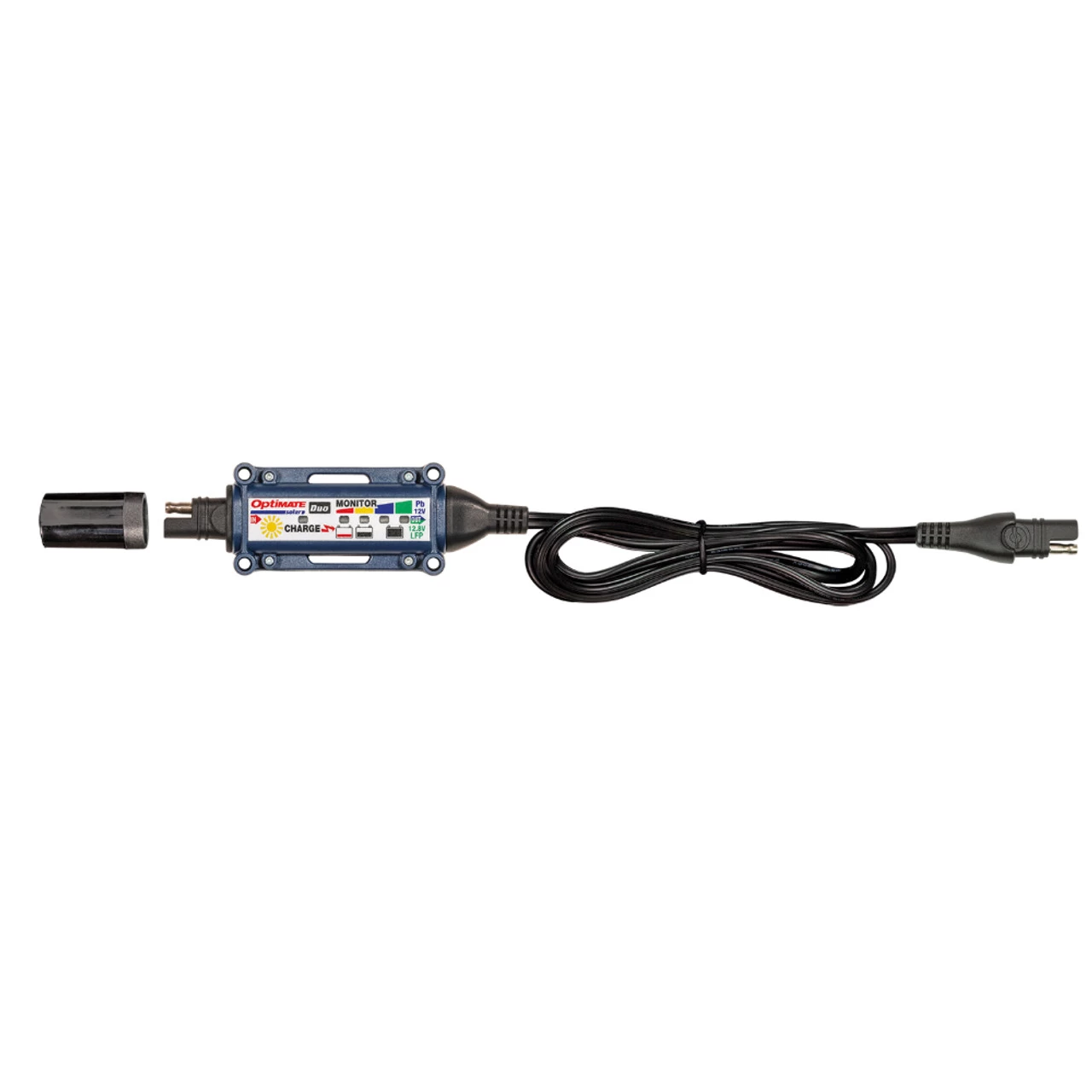

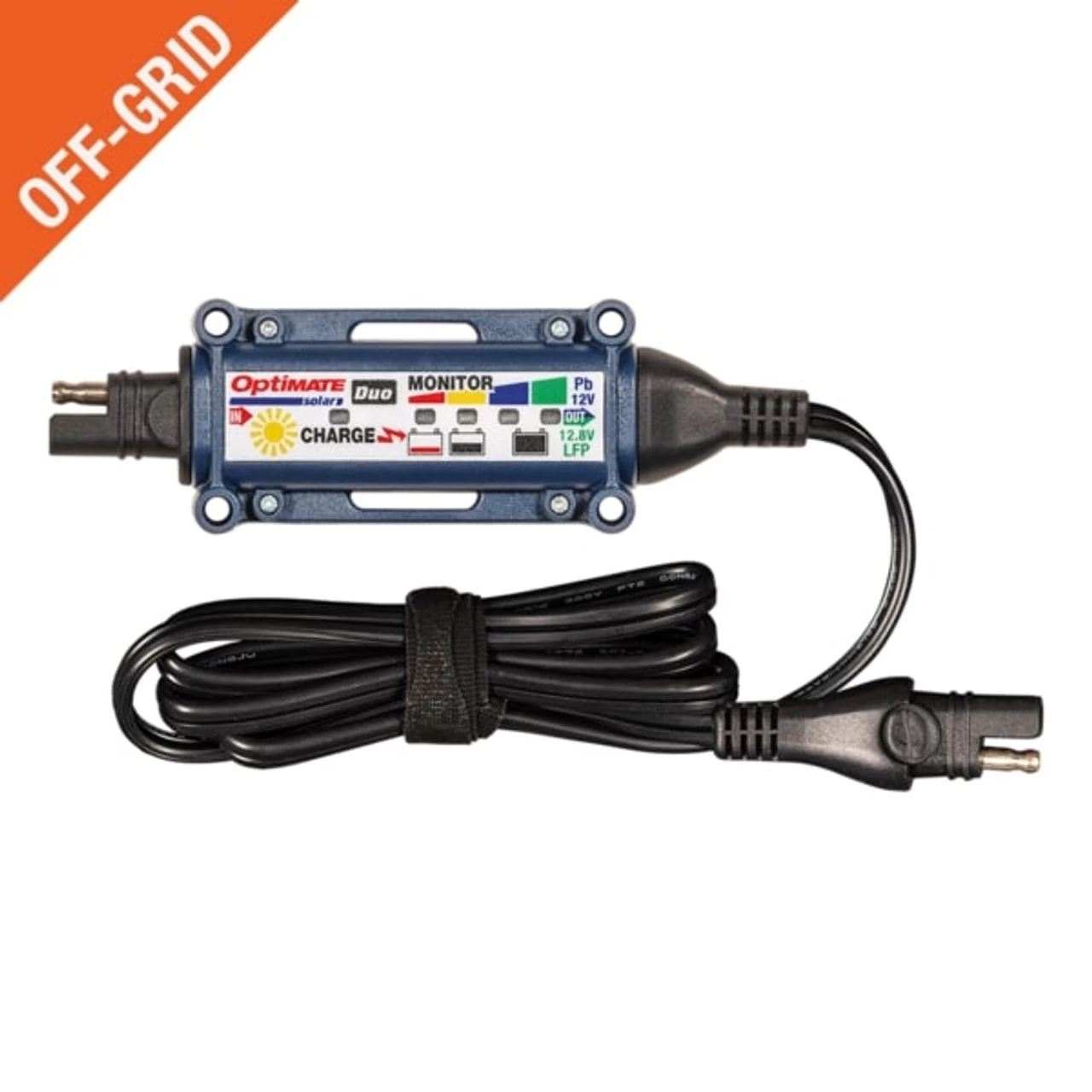

OptiMate Solar Duo 5A Controller

OptiMate Solar Duo – The smart 5 amp solar controller that safely charges lead acid AND lithium 12v batteries.

The smart charge controller automatically adjusts the charge according to the battery type and condition. Connect to the battery and the OptiMate Solar Duo Controller does the rest. OptiMate Solar charge kits are fully automatic. Mount the panel in a suitable location to receive maximum sunlight, hook up the charger/monitor to the battery and walk away. No more battery problems.

Flat batteries can be saved from as low as 4v with its unique pulse action. The OptiMate Solar range features a smart charger/monitor which provides battery status information when charging and when the battery is at rest overnight.

Battery condition is displayed every 3 seconds. Ready indication for STD, AGM and Lithium LFP batteries. Draws less than 0.5mA during monitor mode and the controller will automatically switch to charge when solar power is sufficient.

FEATURES

•  Converts low solar energy to efficient pulse charge
•  DAY: Charge & maintain. NIGHT: monitor charge level
•  Safe to leave connected. Full electronic protection
•  Saves your ‘dead’ battery from as low as 4V
•  Energy saving technology
–  Efficient dual conversion
–  Low power use
•  IP54 weatherproof

SPECIFICATION

IDEAL FOR: STD, AGM & GEL 12V batteries from 2 – 240Ah and Lithium LFP 12.8V / 13.2V batteries
CHARGING AMPS: 5A from 10-60W panel (max. average current), 3-5A pulse current
STEPS: 6
– Test: Solar in
– Save
– Charge
– Optimize
– Maintain
– Monitor
USE: Indoor / outdoor (lowest temperature: -4°F / -20°C)
INPUT: 15 – 22V
STYLE: Weatherproof charge controller case
SAVE: Low volt start of 4V
SAFE: No risk of overcharging. Totally safe for vehicle electronics. Sparks suppressed. Safe for long-term battery maintenance. Automatic shut-down if short-circuited or battery disconnected
INCLUDED: Weatherproof battery lead, standard battery clip set, and SAE 2-pin connector
WARRANTY: 3-year limited replacement warranty
Manufacturer Part Number: TM522-D
