OptiMate Solar Duo 40W Travel Kit

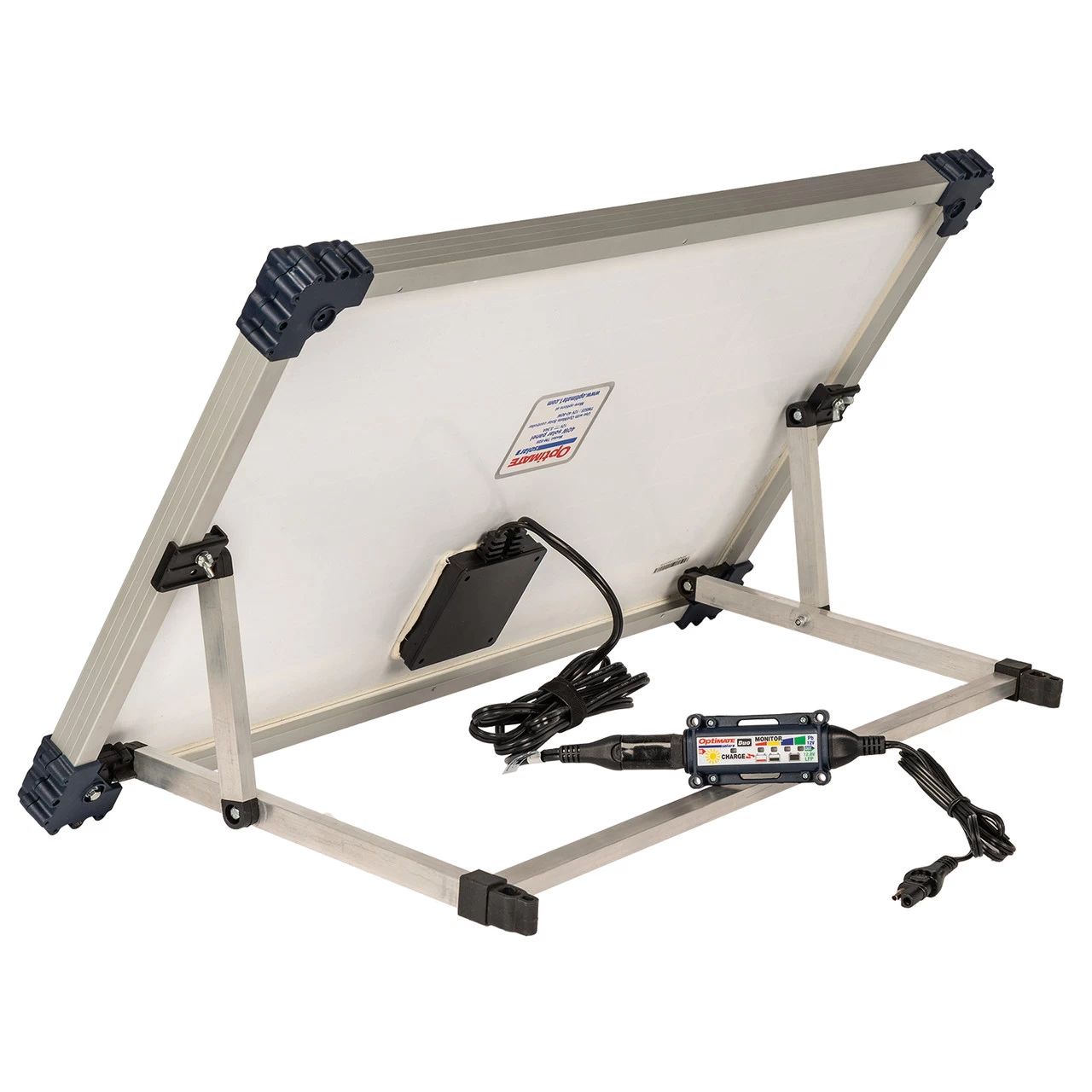

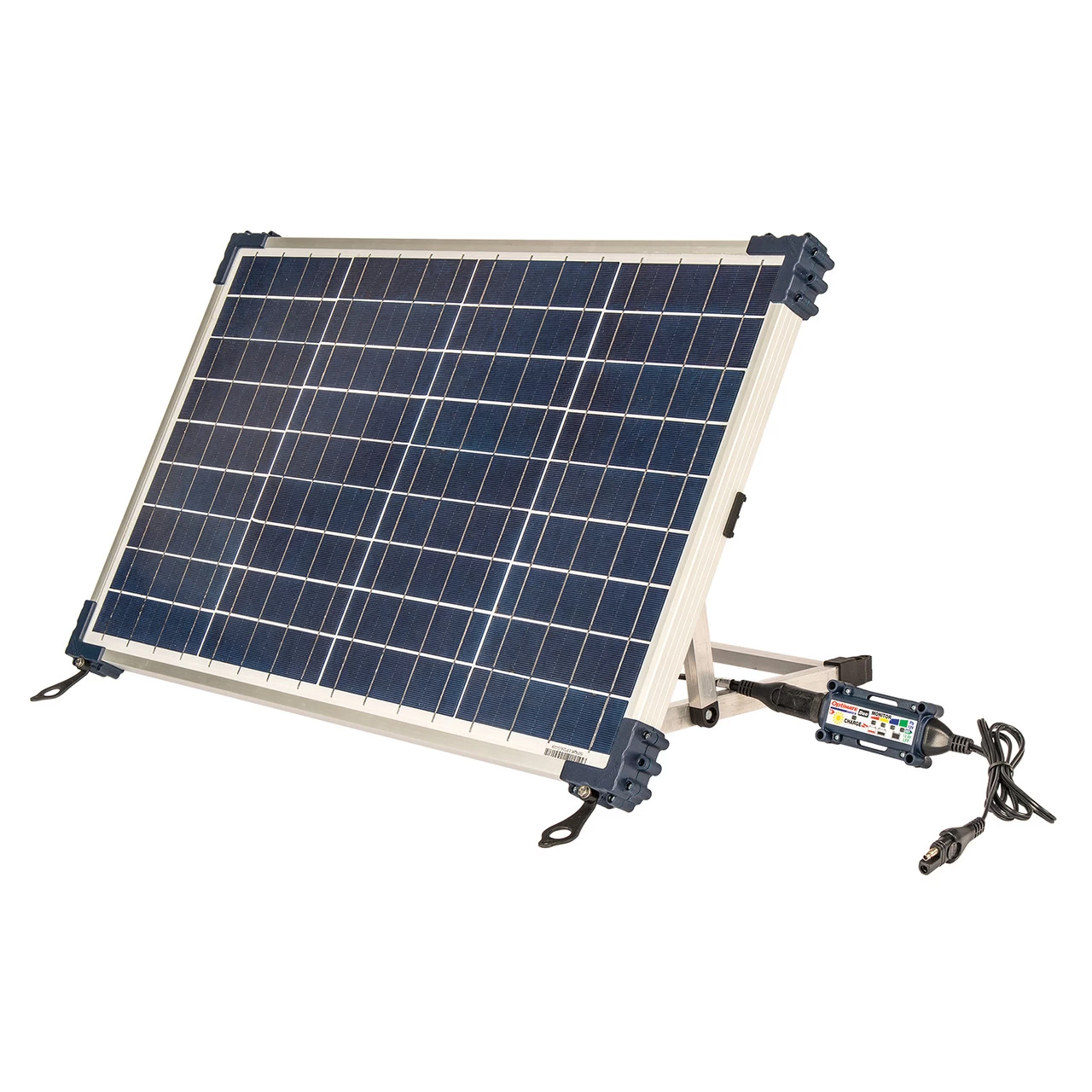

OptiMate Solar – the worlds most efficient Solar Pulse Charger, Tester & Maintainer. The travel kit also includes the premium OptiMate travel bag and adjustable stand. Adjust the panel to the most suitable angle for maximum solar power. Securing panel in position – 4 anchor points fit standard pegs / stakes (not included) or place a weight (e.g. sandbag) over the crossbar.

Charger by day, monitor by night.

The new OptiMate Solar range features a smart charger-monitor which automatically adjusts the charge according to the battery type and condition. Battery status information is provided while charging and when the battery is at rest overnight. The OptiMate Solar TM522-D4 7 amp smart charger controller has a 5 LED panel for comprehensive information on charge progress and battery status.

OptiMate Solar charge kits are fully automatic. Mount the panel in a suitable location to receive maximum sunlight, hook up the charger-monitor to the battery and walk away. No more battery problems.

When the panel receives sun, the SOLAR CHARGE LED blinks confirming solar power is being delivered and one of the four battery status LEDs (SAVE, CHARGE, MAINTAIN) indicates charge progress. OptiMate Solar converts low solar energy to a high pulse charge which improves solar charge efficiency. When night falls or if the smart charger-monitor senses no solar power is being delivered it changes into a battery monitor with one of the three charge status lights now indicating battery status every three seconds.

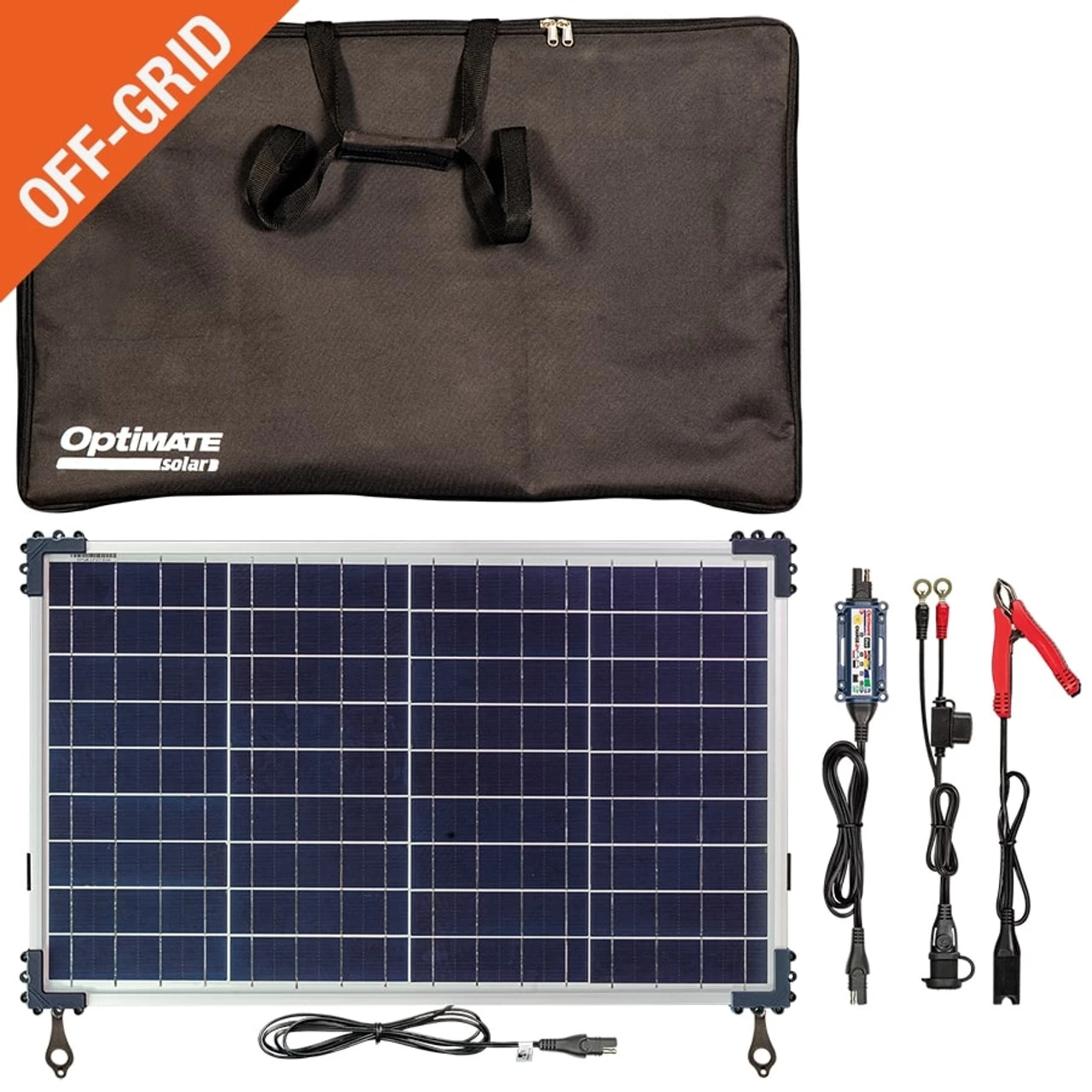

The 40W TM522-D4 kit (12V 3.3A max.) is ideal for all batteries from 10-160Ah. The weatherproof solar panel includes corner mounts for easy wall or roof mounting. Each kit includes a high intensity poly crystalline panel with a 2m power cable, an OptiMate O-1 weatherproof battery lead, an OptiMate O-4 battery clamp lead and the outdoor rated OptiMate smart charger-controller (TM522-D4) with a 1m charge cable.

FEATURES

•  For all 12V power sport battery types including lead-acid (Pb) > STD (with filler caps), AGM & GEL (sealed VRLA) ) and Li-Ion made with LiFePO4 / LFP technology
•  Converts low solar energy to efficient pulse charge
•  DAY: Charge & maintain. NIGHT: monitor charge level
•  Safe to leave connected. Full electronic protection
•  Saves your ‘dead’ battery from as low as 4V
•  Displays battery state of charge
•  Energy saving technology
–  Efficient dual conversion
–  Complete 24-7 maintenance
•  IP54 weatherproof

SPECIFICATION

Solar Panel:
POWER: 40 Watts (max)
VOLTS : 12V / 12.8V
USE : Outdoor
STYLE : Weatherproof – polycrystalline, aluminium frame with 4 x mounting brackets, output cable 200cm / 80″ with SAE connector
PANEL SIZE: 680 x 420 x 30mm

IDEAL FOR: STD, AGM & GEL 12V batteries and Lithium LFP 12.8V / 13.2V batteries from 10 – 160Ah
CHARGING AMPS: 3.33A from 40W panel (max. average current), 3-5A pulse current
STEPS: 6
– Test: Solar in
– Save
– Charge
– Optimize
– Maintain
– Monitor
USE: Indoor / outdoor (lowest temperature: -4°F / -20°C)
INPUT: 15 – 22V
STYLE: Weatherproof charge controller case
SAVE: Low volt start of 4V
SAFE: No risk of overcharging. Totally safe for vehicle electronics. Sparks suppressed. Safe for long-term battery maintenance. Automatic shut-down if short-circuited or battery disconnected.

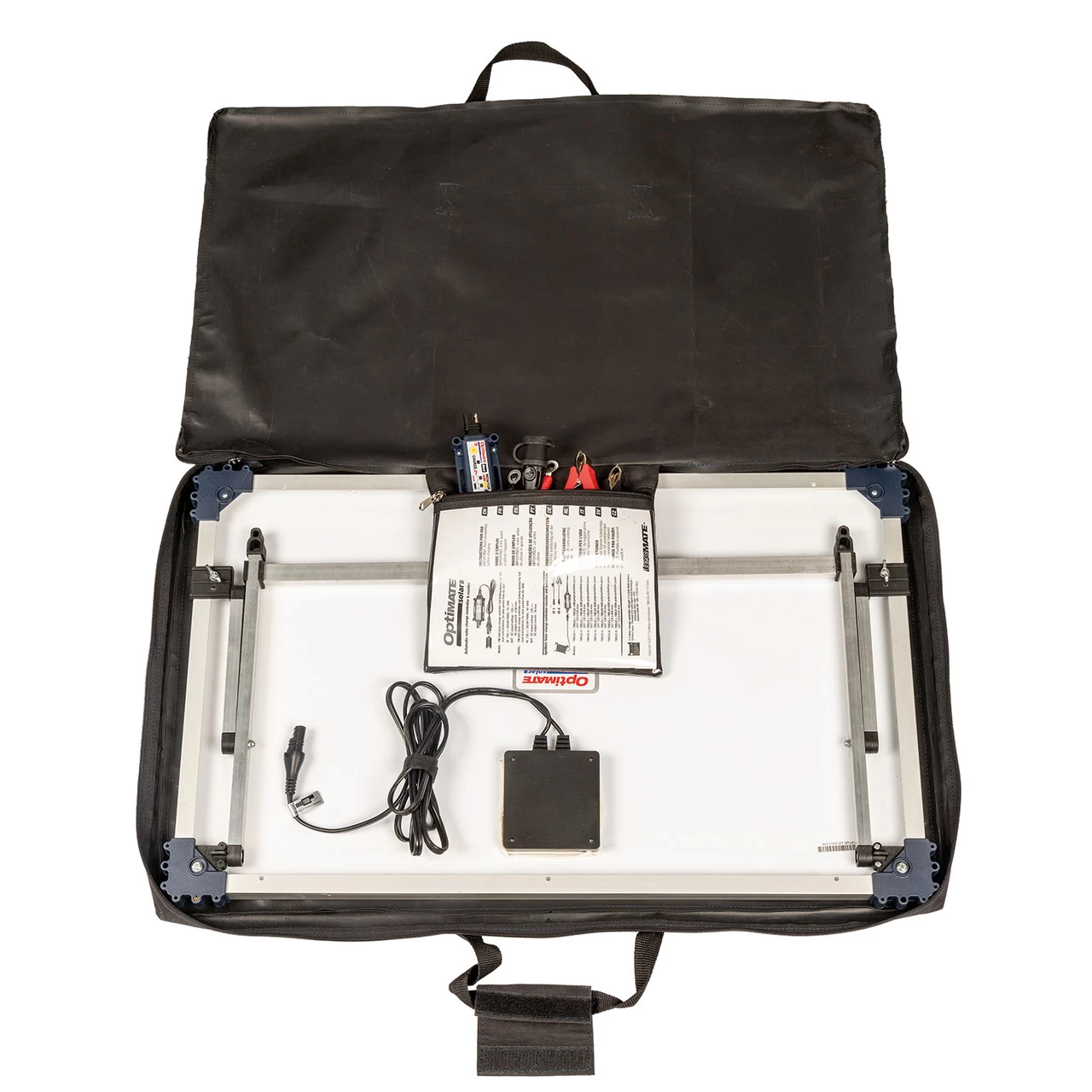

INCLUDED: Weatherproof battery lead, standard battery clip set, 40W solar panel, adjustable stand & nylon storage case.
WARRANTY: 3-year limited replacement warranty.
Manufacturer Part Number: TM522-D4TK
