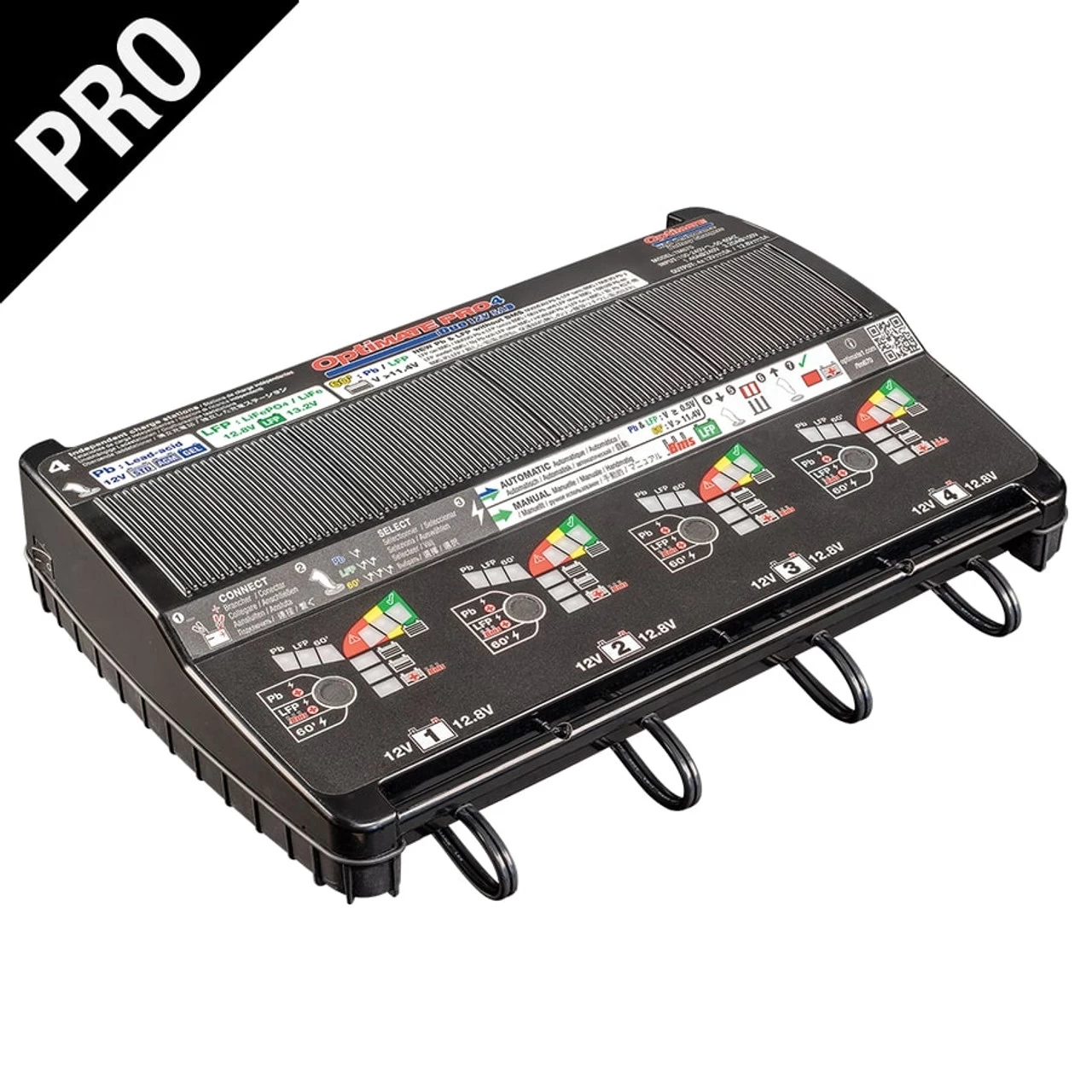

OptiMate PRO-4 Duo

OptiMate PRO-4 DUO, the 4-channel professional combination battery charger-tester & power supply for powersport, small marine and light aircraft repair shops and battery retailers. Suitable for new or used 12V lead-acid batteries from 3-50Ah and 12.8V /13.2V LiFePO4 batteries from 2-20Ah.

OptiMate PRO-4 DUO is the automatic diagnostic charger for 4 x 12V lead-acid (STD, AGM, GEL) and/or 12.8V LFP lithium (LiFePO4 / Lithium Ferrous Phosphate) batteries.

Four fully independent 5 Amp charging outlets each with 3 Selectable modes to service NEW and USED powersport batteries, including 12V lead-acid, AGM, GEL and 12.8V lithium (LiFePO4 / LFP).

Three selectable modes:

• Charge mode for 12V lead-acid batteries, including wet and AGM
• Charge mode for 12.8V LiFePO4 (“Lithium” LFP) batteries
• 60′: A shortened program with charge time limited to 60 minutes or 1 hour with auto detection of battery type. (If no selection (Pb or LFP) is made prior to connecting a battery the 60′ mode becomes the default selection)

Activate or prepare new batteries including:

• Lead-acid dry-charged AGM with separate acid pack
• Lead-acid factory activated AGM & GEL batteries
• LFP lithium batteries delivered in sleep mode and/or requiring a top-up charge

FEATURES

• Smart recovery mode for deep discharged batteries.

• Automatic fast battery activation and test: flashing green test light indicates battery is healthy and sufficiently charged.

• Advanced testing: quick identification of bad batteries and automatic retesting of a good battery after charge is complete. Test indication for GOOD (80 to 100%), OK (60 to 80%) and BAD (below 60%) batteries.

• Push value activated BMS reset for LiFePO4 batteries. Essential for “waking” new batteries shipped discharged.

SPECIFICATION

IDEAL FOR: 12V lead-acid STD & AGM batteries from 3-50Ah and 12.8V/13.2V Lithium LFP (LiFePO4) batteries from 2-20Ah
CHARGING AMPS: 0.4A to 5A variable (Ampmatic)
CHARGING VOLTS: 12V lead-acid: 0.5V to 22V.
12.8V/13.2V Lithium LFP (LiFePO4): 0.5V to 14.4V
OPERATION: Selectable
STEPS: 11
USE: Indoor rating IP40
INPUT: Global (100-240V 50-60Hz), high efficiency
STYLE: AC Class 2 input socket, with ON/OFF switch, 15cm / 6″ output cord

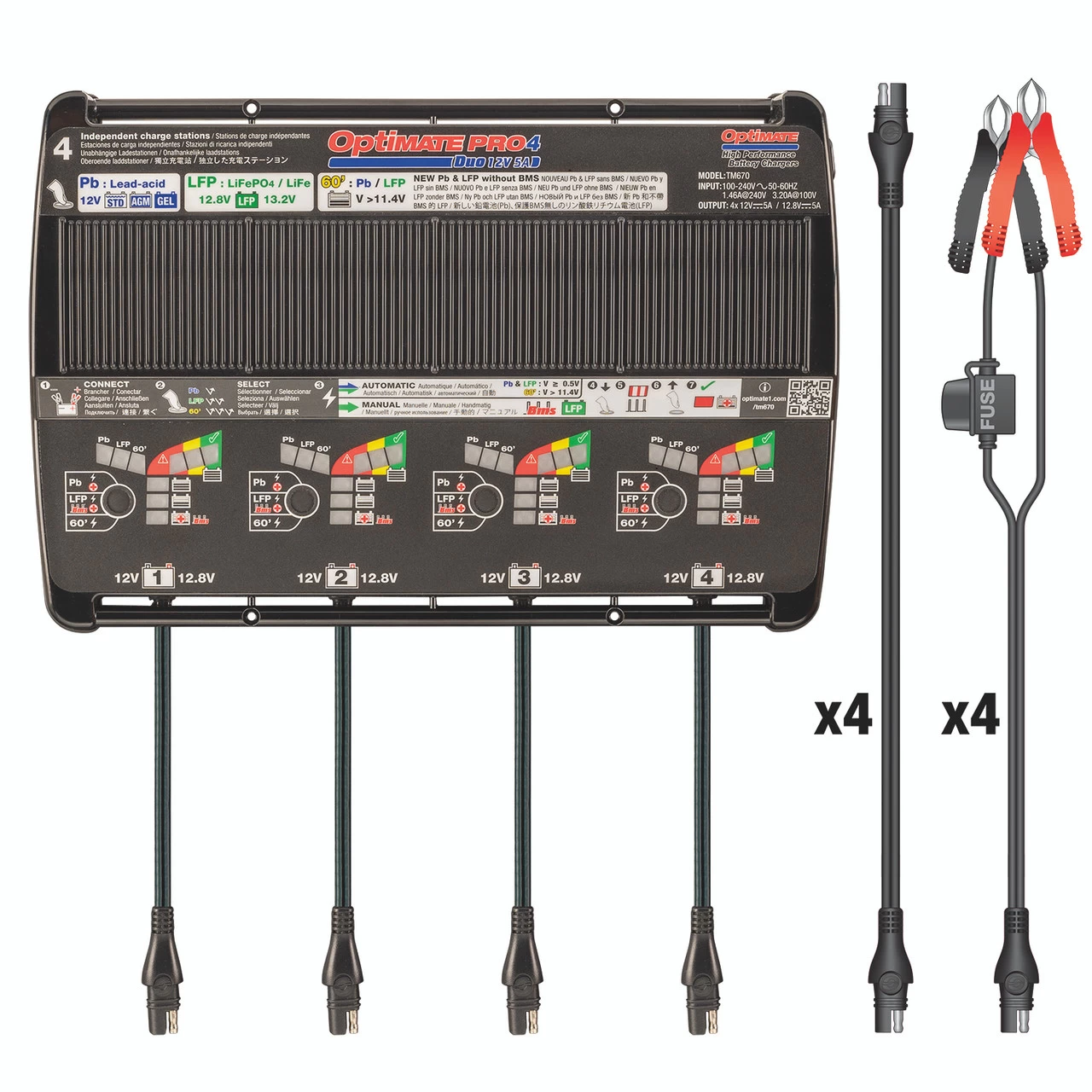

INCLUDED: Class II AC cord suitable for region, O-43 charge lead extender 180cm/72″ and O-14 fused battery clips
WARRANTY: 2-year limited repair/replacement warranty.
CERTIFICATION: CE, UKCA,NRTL (UL & CSA), PSE (Japan), SAA (Aus & NZ)
Manufacturer Part Number: TM670BS
