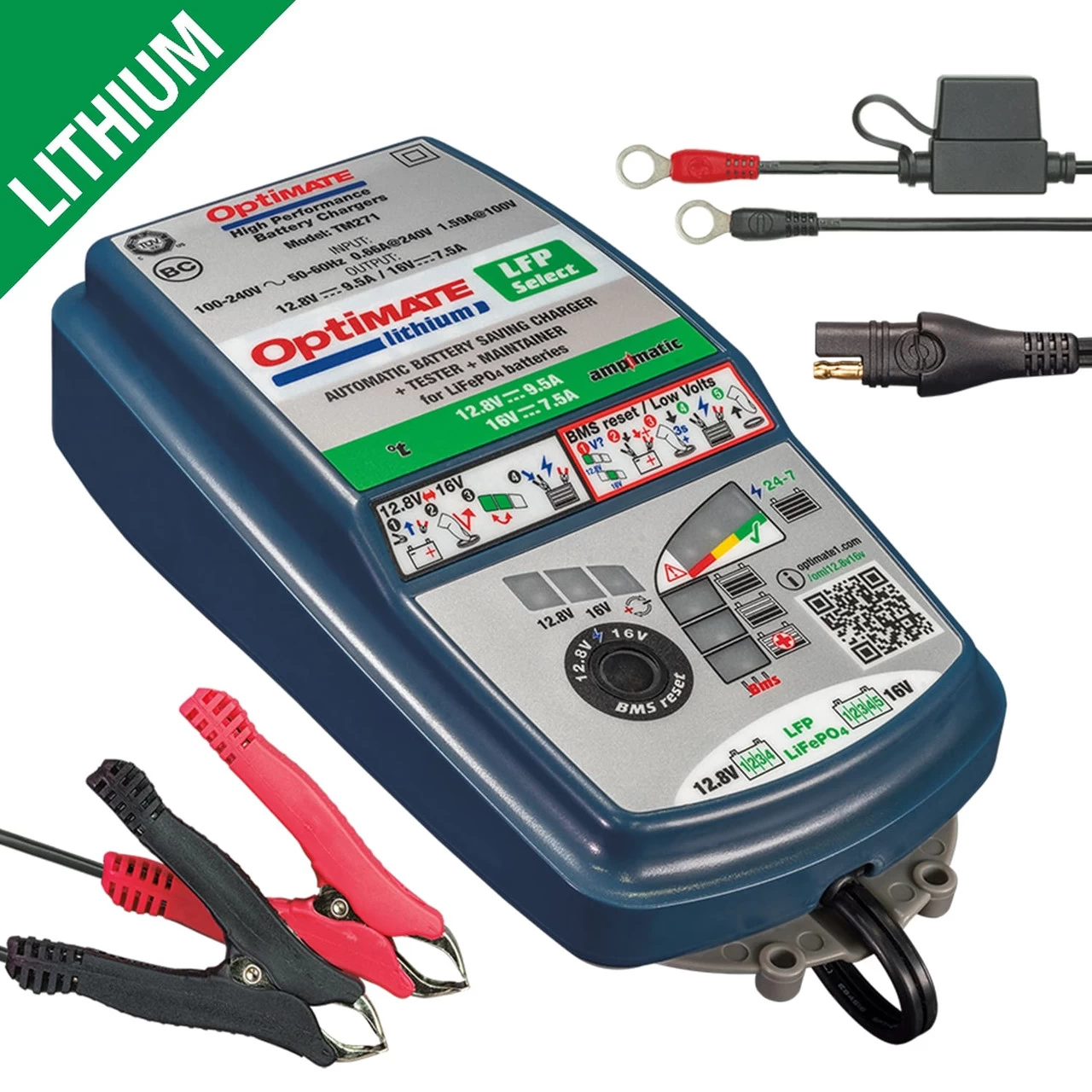

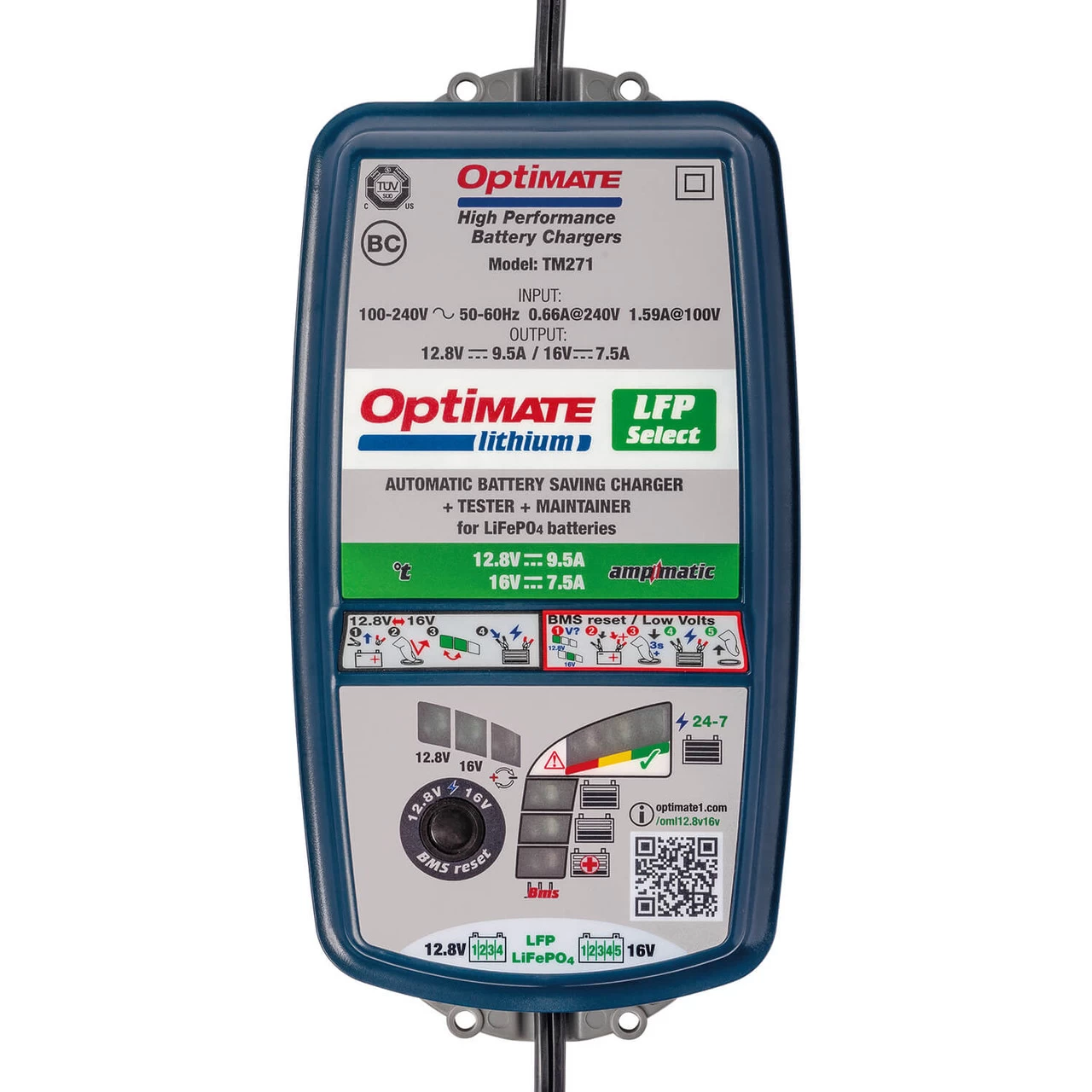

OptiMate Lithium Select 12V/16V

Select charge voltage of 12.8V for 4s Lithium batteries or 16V for 5s Lithium batteries – Selection remains in memory even if AC power is lost.

OptiMate Lithium Select is the advanced ‘PRO’ battery charger for the 12.8V & 16V LiFePO4 / LFP lithium battery in your performance / race motorcycles, cars or craft – The ultimate Lithium charger for the track!

Fully automatic multi-step program brings the battery safely to full charge – Connect to the battery and OptiMate Lithium Select does the rest.

The BMS re-activates battery from sleep or deep discharge protection mode.

FEATURES

•  For Li-Ion 12.8V/13.2V and 16V powersport battery types made with LiFePO4/LFP technology
•  Automatically adjusts current to match battery size and condition
•  Safe to leave connected. Full electronic protection
•  Maintains battery at full charge for good health
•  Low voltage recovery from as low as 0.5V
•  Tests battery state of health
•  Warns when battery damage is detected
•  Energy saving technology
–  Stand-by power less than 0.5W
–  Efficient 24-7 battery maintenance
•  IP54 weatherproof. Rated for use down to -40°c

SPECIFICATION

IDEAL FOR: Lithium (LiFePO4) 12.8/13.2V and 16V batteries from 3 – 120Ah
CHARGING AMPS: 9.5A @ 12.8V – 13.2V / 7.5A @ 16V (Ampmatic Current)
CHARGING VOLTS: nominal: 12.8V – 13.2V range: 0.5V – 14.4V / nominal: 16V range: 0.5V – 18V
OPERATION: Selectable
STEPS: 10
– Low volt start
– Test before charge
– Temperature check
– Ultra low volt save
– Love volt save: cell monitoring
– Test: cell damage
– Charge: cell balancing
– Optimize
– Test after charge
– Maintain 24-7
FEATURES: Perfect for charging of a high performance 12.8V @ 9.5A and 16V @ 7.5A LiFePO4 / LFP battery sized from 2.5 to 120 Amp-hour.
USE: Indoor / outdoor (lowest temperature: -40°F / -40°C)
INPUT: Global (100-240V 50-60Hz), high efficiency (CEC listed)
STYLE: Weatherproof case with wall mounts, with 180cm AC supply lead and 180cm charge lead ending in SAE connector
SAVE: Low volt start of 0.5V + 3 step low volt save and test
SAFE: No risk of overcharging. Totally safe for vehicle electronics. Sparks suppressed. Safe for long-term battery maintenance. Automatic shut-down if short-circuited or battery disconnected.
INCLUDED: Weatherproof battery lead and battery clip set.
WARRANTY: 3-year limited replacement warranty.
Manufacturer Part Number: TM272
