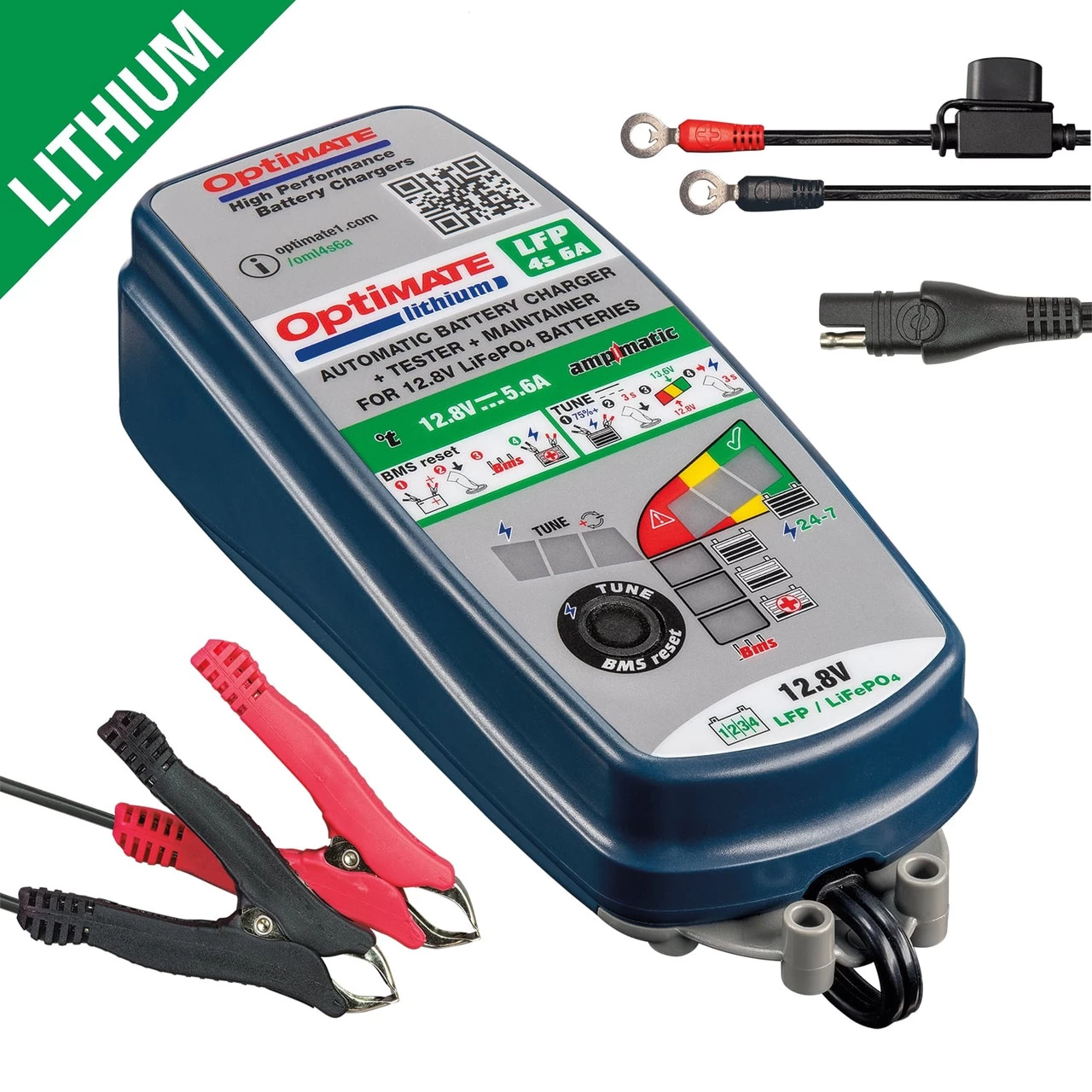

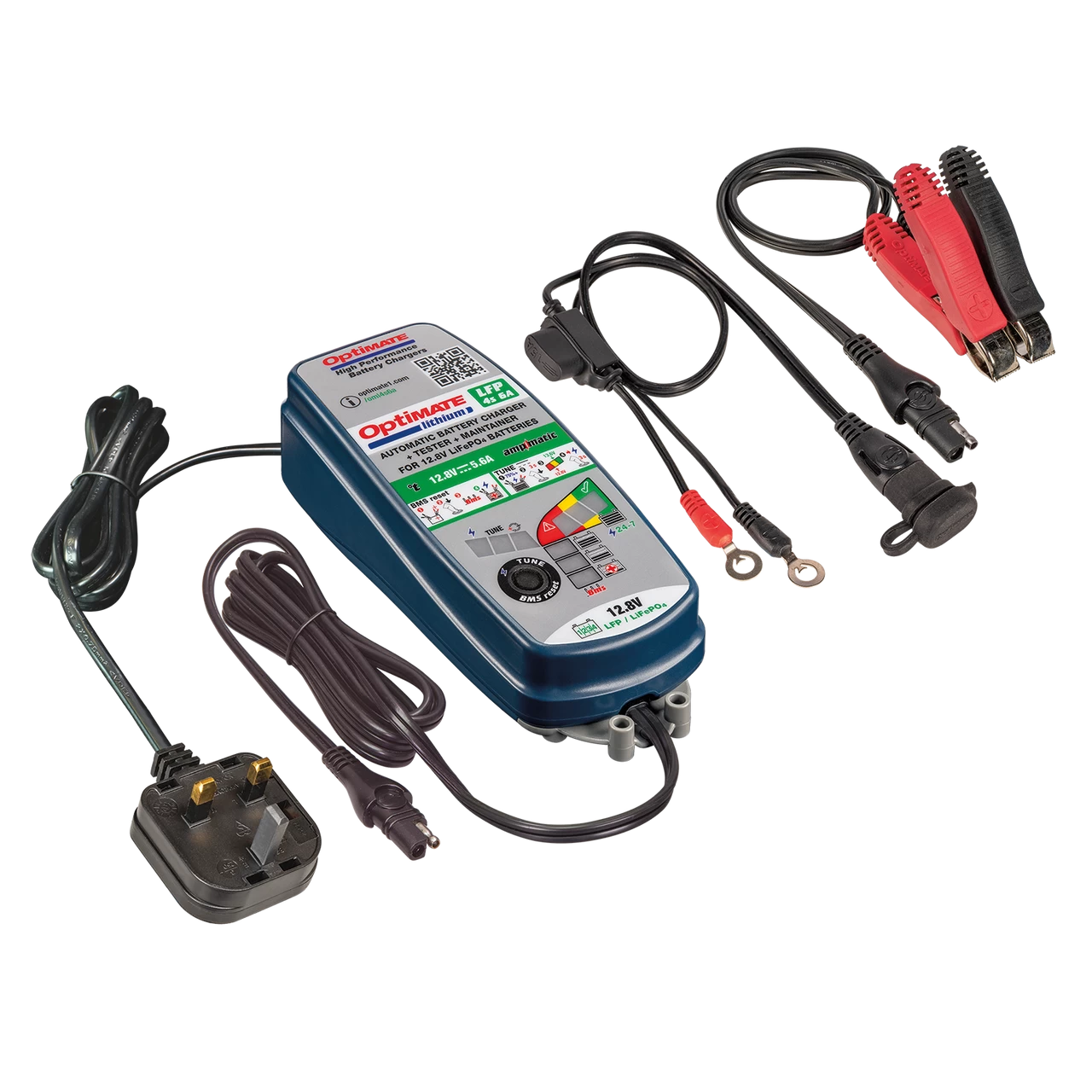

OptiMate Lithium 6A

The OptiMate Lithium will protect your investment and guarantee your Lithium Iron Phosphate (LiFePO4 / LFP) battery will perform as advertised for a very long time. With 6 Amps of charge current available, OptiMate Lithium’s unique multi step Ampmatic program recharges and balances cells within the battery quickly and efficiently. OptiMate Lithium’s maintenance program delivers current to the vehicle circuitry, protecting and keeping the battery at 100% charge.

As soon as it’s connected, the Ampmatic microprocessor automatically diagnoses your battery’s condition and sets the optimal charge current and program. This enhanced version of the acclaimed OptiMate multi-stage desulphation program will even automatically give many deep-discharged and otherwise “dead” batteries a new lease of life. When the charge is complete the eco power-saving mode ensures ultra low power consumption while keeping your battery optimally charged, cool and safe, month after month, prolonging its life by up to 400%!

The BMS re-activates battery from sleep or deep discharge protection mode and the OptiMate has a TUNE mode to provides stable battery support during ECU programming / troubleshooting.

FEATURES

•  For Li-Ion 12.8V/13.2V powersport battery types made with LiFePO4/LFP technology
•  Automatically adjusts current to match battery size and condition
•  Safe to leave connected. Full electronic protection
•  Maintains battery at full charge for good health
•  Saves your dead battery from as low as 0.5V
•  Tests battery state of health
•  Warns when battery damage is detected
•  Energy saving technology
–  Stand-by power less than 0.5W
–  Efficient 24-7 battery maintenance
•  IP54 weatherproof. Rated for use down to -40°c

SPECIFICATION

IDEAL FOR: Lithium (LiFePO4) 12.8/13.2V batteries from 3 – 72Ah
CHARGING AMPS: 6A (AmpMatic current)
CHARGING VOLTS: nominal: 12.8V range: 0.5V – 14.4V
OPERATION: Fully automatic
STEPS: 10
– Low volt start
– Test before charge
– Temperature check
– Ultra low volt save
– Love volt save: cell monitoring
– Test: cell damage
– Charge: cell balancing
– Optimize
– Test after charge
– Maintain 24-7
FEATURES: Starts from 0.5V with continuous monitoring/testing of charge acceptance or bad/shorted cell condition. Unnecessary (and unsafe) charging of a bad battery is prevented.
USE: Indoor / outdoor (lowest temperature: -40°F / -40°C)
INPUT: Global (100-240V 50-60Hz), high efficiency (CEC listed)
STYLE: Weatherproof case with wall mounts, with 180cm AC supply lead and 180cm charge lead ending in SAE connector
SAVE: Low volt start of 0.5V + 3 step low volt save and test
SAFE: No risk of overcharging. Totally safe for vehicle electronics. Sparks suppressed. Safe for long-term battery maintenance. Automatic shut-down if short-circuited or battery disconnected.
INCLUDED: Weatherproof battery lead and battery clip set.
WARRANTY: 3-year limited replacement warranty.
Manufacturer Part Number: TM392
