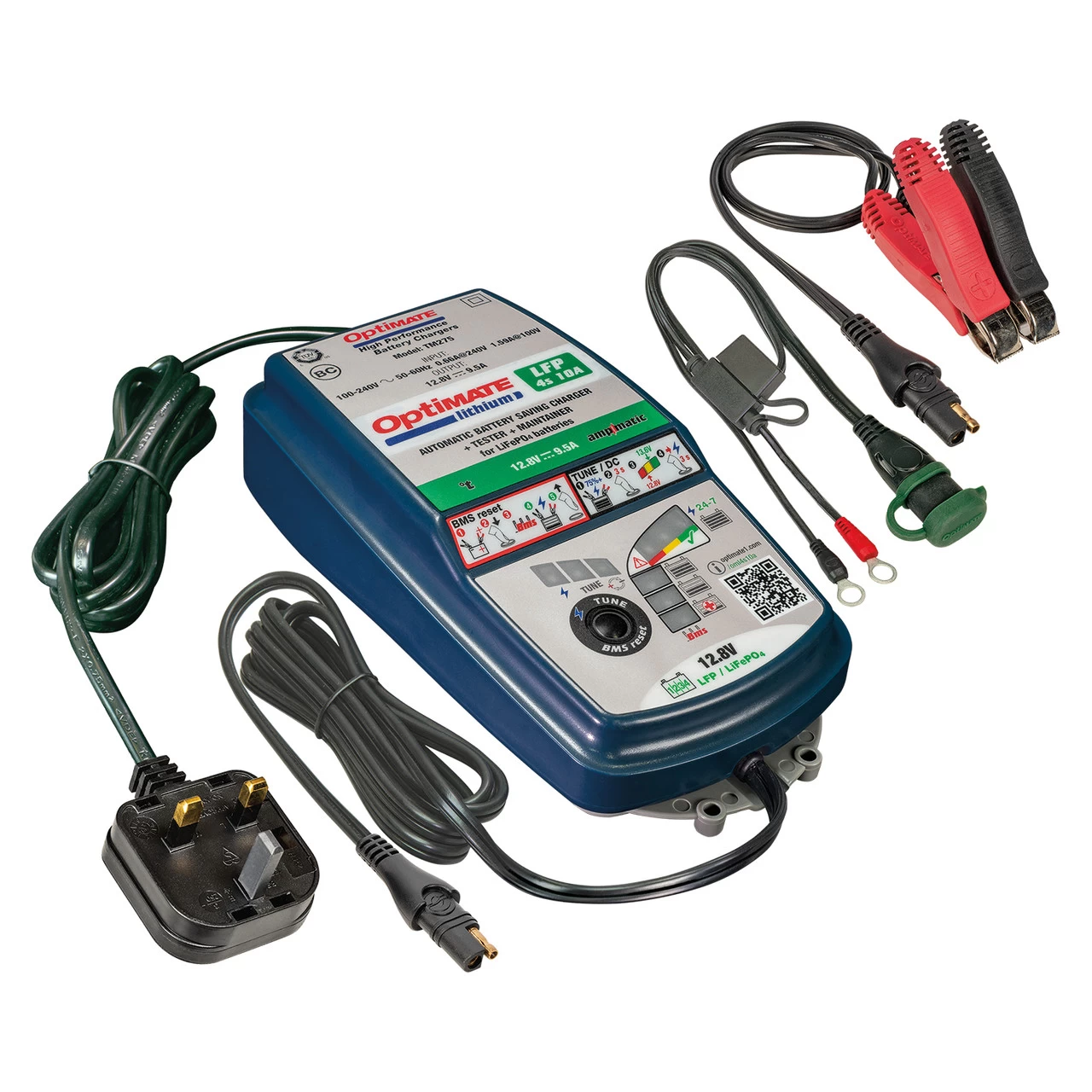

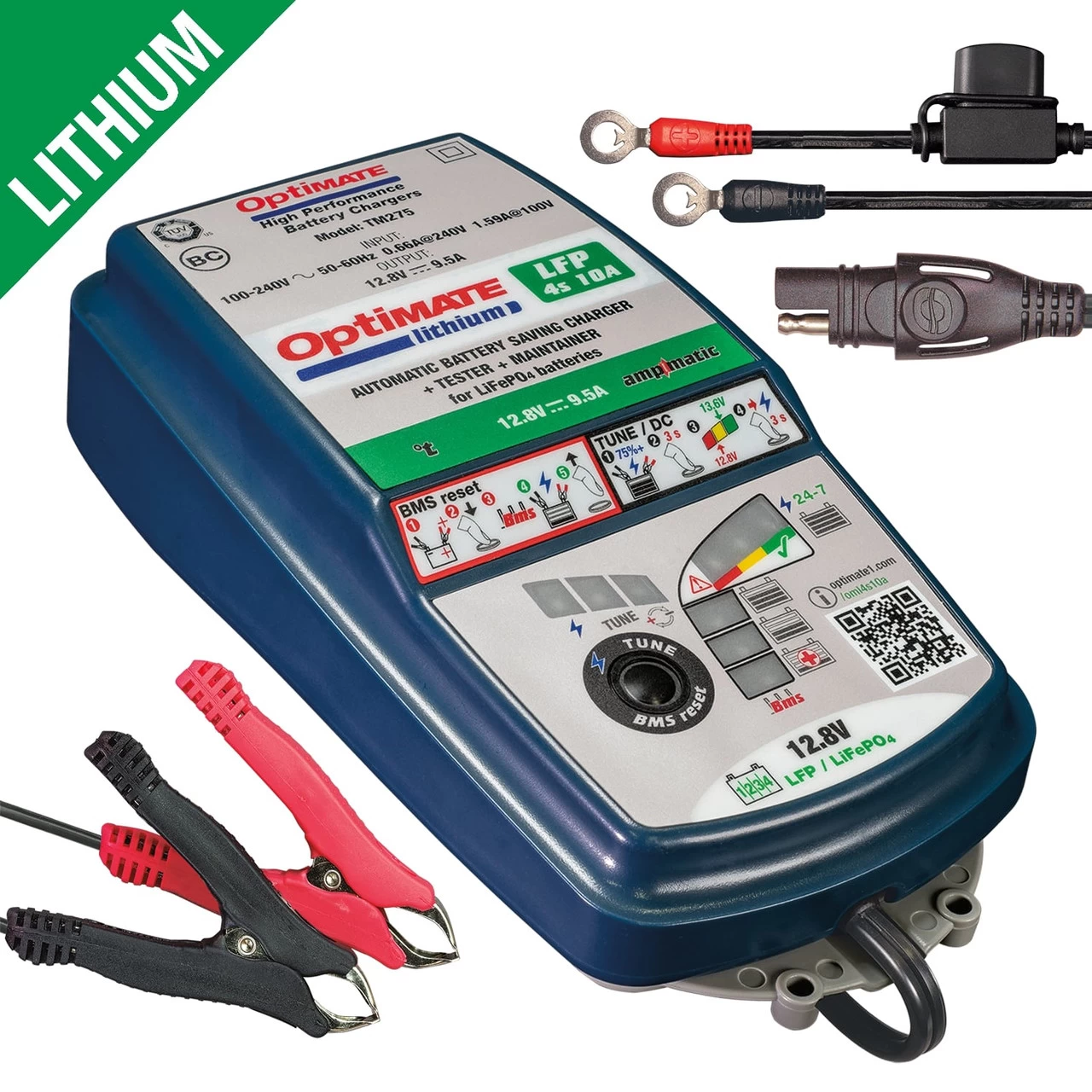

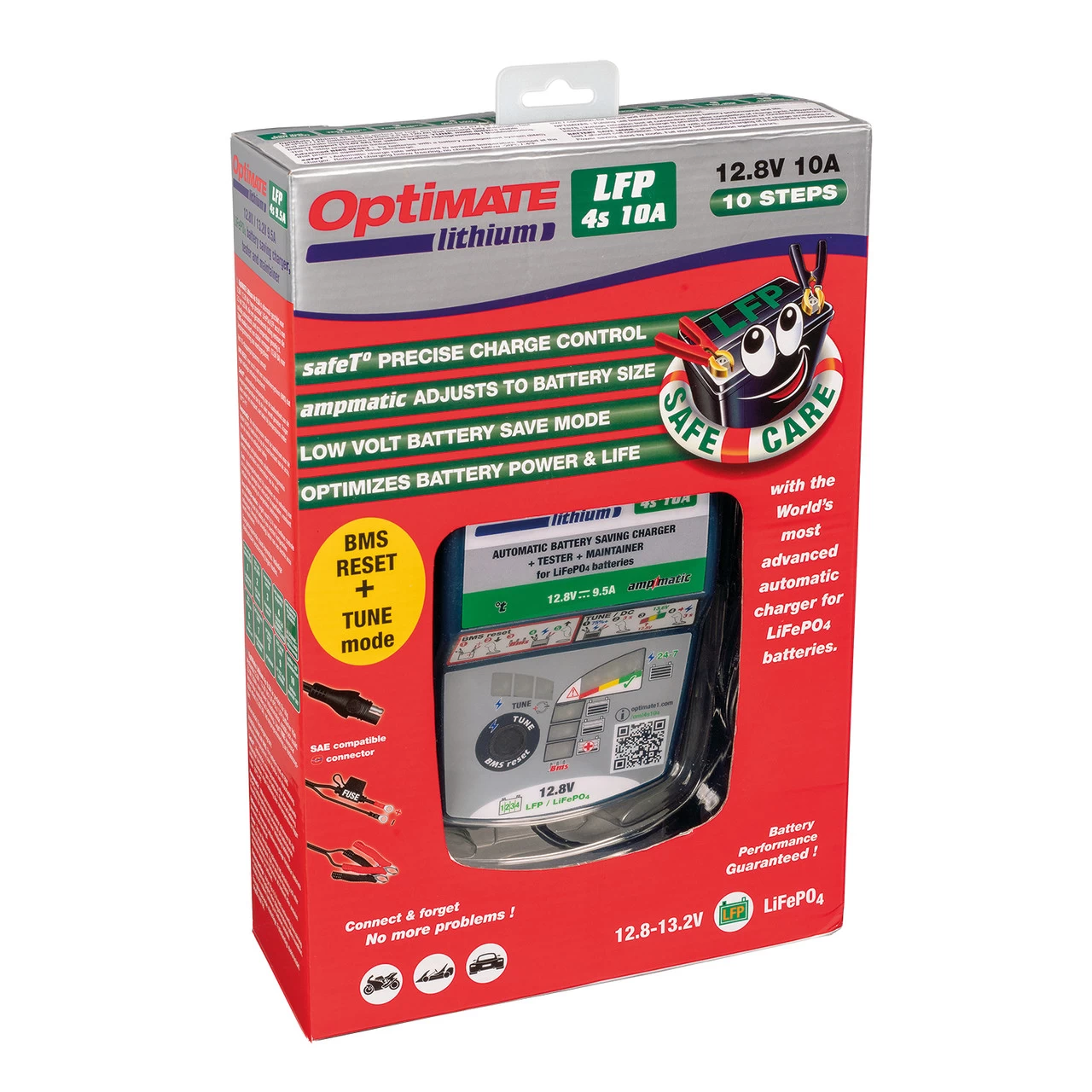

OptiMate Lithium 10A

OptiMate Lithium 4s 10A is the advanced battery charger, with TUNE mode for diagnostics or up-dating programming, for 12.8V/13.2V LiFeP04 / LFP batteries – The ultimate Lithium charger for race car owners!

The BMS re-activates battery from sleep or deep discharge protection mode.

Fully automatic multi-step program brings the battery safely to full charge – Connect to the battery and OptiMate Lithium 4s 10A does the rest.

FEATURES

•  For Li-Ion 12.8V/13.2V powersport battery types made with LiFePO4/LFP technology
•  Automatically adjusts current to match battery size and condition
•  Safe to leave connected. Full electronic protection
•  Maintains battery at full charge for good health
•  Low voltage recovery from as low as 0.5V
•  Tests battery state of health
•  Warns when battery damage is detected
•  Energy saving technology
–  Stand-by power less than 0.5W
–  Efficient 24-7 battery maintenance
•  IP54 weatherproof. Rated for use down to -40°c

SPECIFICATION

IDEAL FOR: Lithium (LiFePO4) 12.8/13.2V batteries from 3 – 120Ah
CHARGING AMPS: 10A (AmpMatic Current)
CHARGING VOLTS: nominal: 12.8V range: 0.5V – 14.4V
OPERATION: Fully automatic
STEPS: 10
– Low volt start
– Test before charge
– Temperature check
– Ultra low volt save
– Love volt save: cell monitoring
– Test: cell damage
– Charge: cell balancing
– Optimize
– Test after charge
– Maintain 24-7
FEATURES: TUNE mode delivers stable power for vehicle system reprogramming, show room vehicle demo or retaining memorised settings when battery cables are disconnected to fit powered accessories or replace the battery.
USE: Indoor / outdoor (lowest temperature: -40°F / -40°C)
INPUT: Global (100-240V 50-60Hz), high efficiency (CEC listed)
STYLE: Weatherproof case with wall mounts, with 180cm AC supply lead and 180cm charge lead ending in SAE connector
SAVE: Low volt start of 0.5V + 3 step low volt save and test
SAFE: No risk of overcharging. Totally safe for vehicle electronics. Sparks suppressed. Safe for long-term battery maintenance. Automatic shut-down if short-circuited or battery disconnected.
INCLUDED: Weatherproof battery lead and battery clip set.
WARRANTY: 3-year limited replacement warranty.
Manufacturer Part Number: TM276
