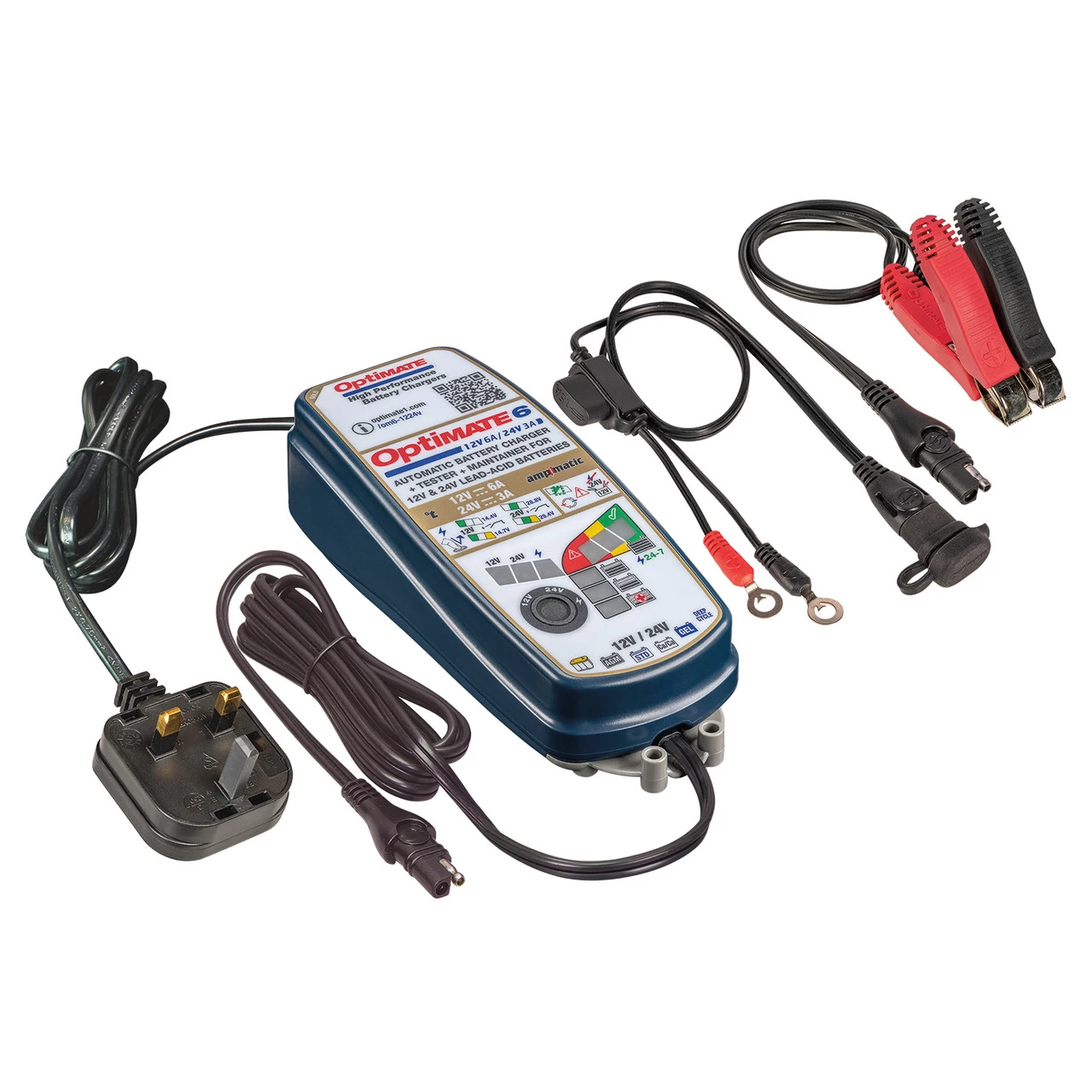

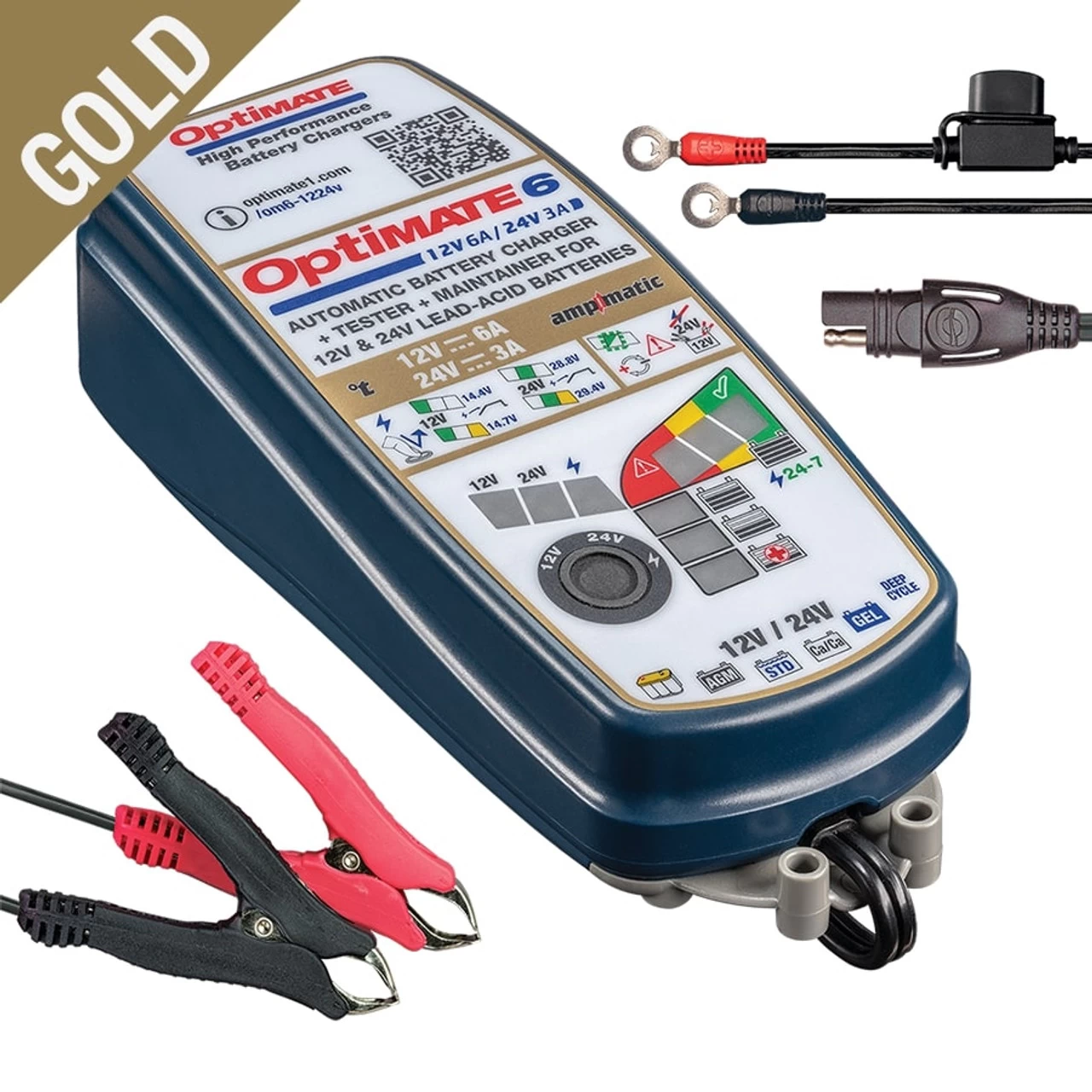

OptiMate 6 12-24

The world’s most advanced 12V & 24V battery charger! OptiMate 6 12V-24V is perfect for high performance 12V and 24V starter and deep cycle batteries that demand accurate temperature controlled charging and unsupervised safe long term maintenance.

The SAVE program has been designed for SAFE fully automatic low volt start (from 0.5 Volts) and PULSE recovery of deep discharged batteries connected to very sensitive electronics e.g. light aircraft, industrial equipment. Protection against incorrect voltage selection. With 24V selected and a 12V battery is connected OptiMate 6 12V-24V will immediately warn that a low voltage is sensed and then not proceed to charging. USER must confirm the nominal voltage of the connected battery is 24V before SAVE mode activates.

FEATURES

•  For lead-acid (Pb) 12V automotive starter (SLI) including STD (with filler caps), AGM, GEL (sealed VRLA), Ca-Ca and deep cycle battery types
•  Automatically adjusts current to match battery size and condition
•  Temperature compensation: Voltage is adjusted higher when colder or lower when hotter
•  Safe to leave connected. Full electronic protection
•  Maintains battery at full charge for good health
•  Saves your dead battery from as low as 0.5V
•  Tests battery state of health

•  Voltage safety check: will not charge if the battery voltage does not match selection. Requires user confirmation.
•  Green technology
– 50% less energy, 50% lower cost
– Power factor correction
– Synchronous rectification
•  IP54 weatherproof. Rated for use down to -40°c

SPECIFICATION

IDEAL FOR: AGM, GEL, STD, deep cycle and Ca-Ca 12V batteries from 6 – 240Ah and 24V batteries from 3 – 120Ah
CHARGING AMPS: 12V / 6A (AmpMatic) and 24V – 3A (AmpMatic)
CHARGING VOLTS: 12V range: 0.5V-14.4V/14.7V; 24V 0.5V*-28.8V-29.4V
* Voltage safety check. Will not charge if the battery voltage does not match selected voltage. User must confirm it is a low volt 24V battery (press selection value for 3 seconds to confirm) then the lowest charge voltage for 24V is reduced to 0.5V
OPERATION: Selectable, 4 charge programs.
12V : 1) 14.4V for standard batteries. 2) 14.7V for premium AGM / deep cycle.
24V : 3) 28.8V for standard batteries. 4) 29.4V for premium AGM / deep cycle.
STEPS: 8
– Select 12V / 24V
– Connect: Safety check
– Test: Battery volts and temperature
– Save
– Charge: AmpMatic
– Optimize: Pulse cell balance
– Test
– Maintain 24/7
FEATURES: Designed for sensitive electronics. The SAVE program has been designed for safe fully automatic low volt start (from 0.5V) and pulse recovery of deep discharged batteries connected to very sensitive electronics e.g. light aircraft, industrial equipment.
USE: Indoor / outdoor (lowest temperature: -40°F / -40°C).
INPUT: Global (100-240V 50-60Hz), high efficiency (CEC listed).
STYLE: Weatherproof case with wall mounts, with 180cm AC supply lead and 180cm charge lead ending in SAE connector.
SAVE: Low volt start of 0.5V + 1 step desulphation recovery.
SAFE: No risk of overcharging. Totally safe for vehicle electronics. Sparks suppressed. Safe for long-term battery maintenance. Automatic shut-down if short-circuited or battery disconnected.
INCLUDED: Weatherproof battery lead and battery clip set.
WARRANTY: 3-year limited replacement warranty.
Manufacturer Part Number: TM382
