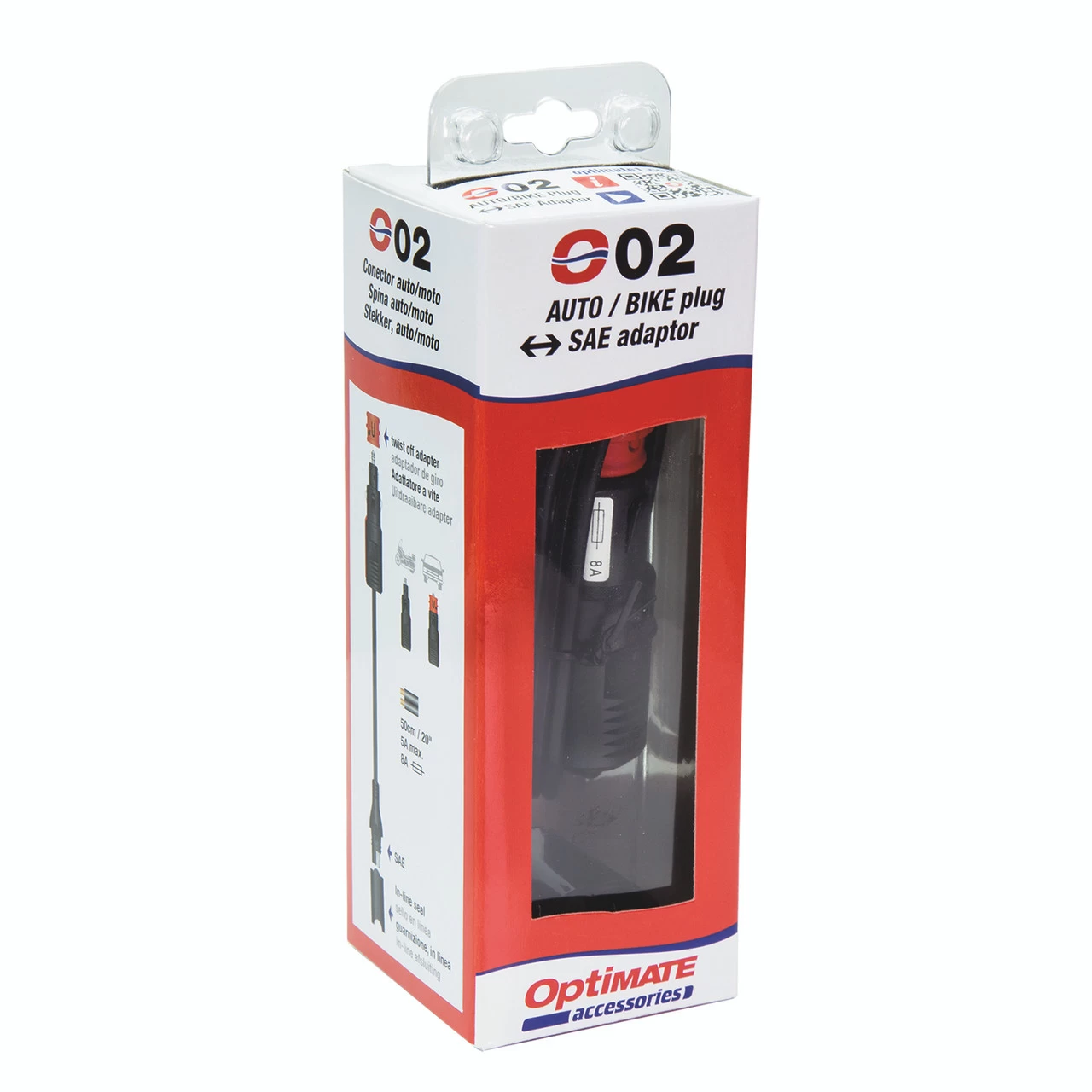

O2 Cig / DIN Plug

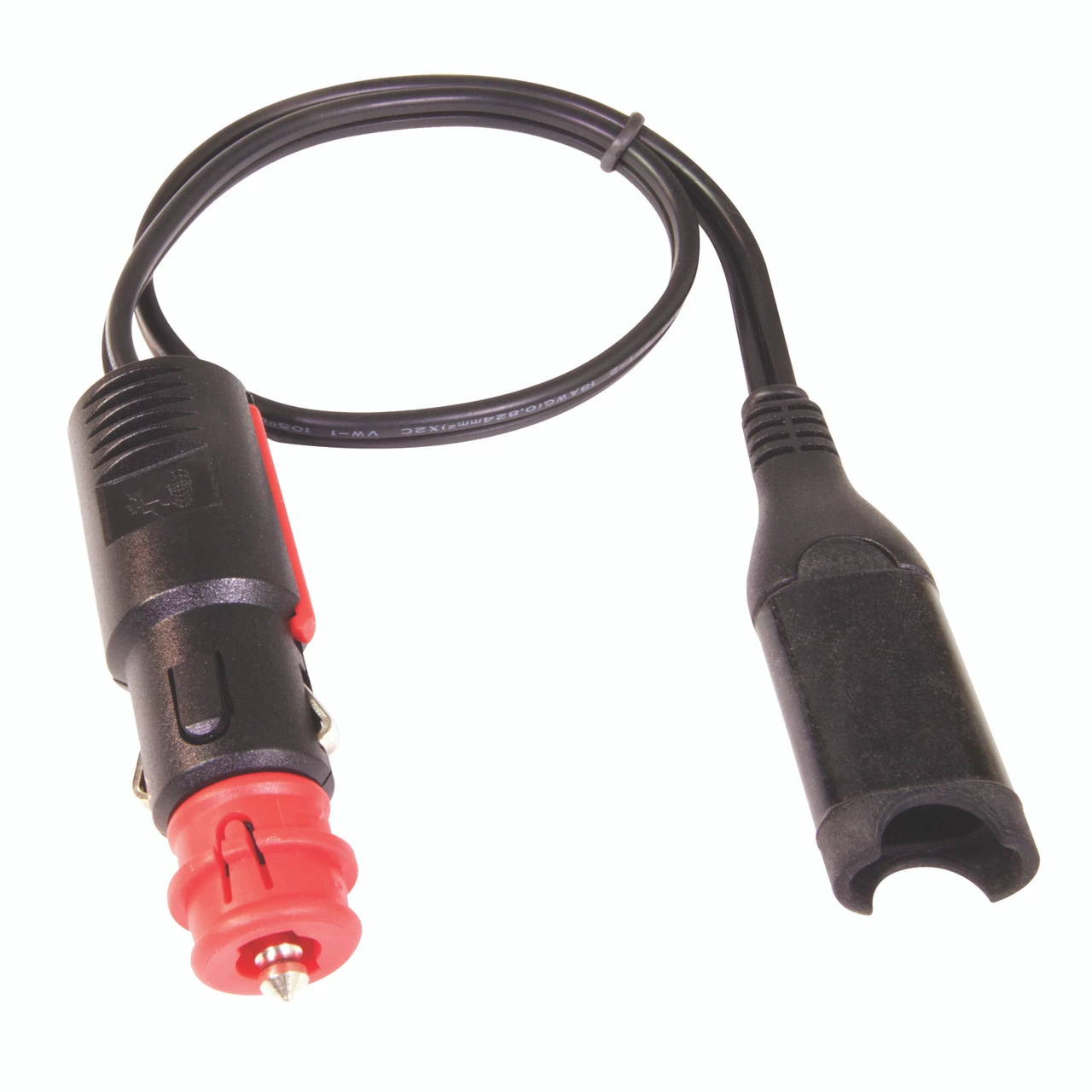

This O2 accessory plug lead allows connection to standard car cigarette lighter sockets and to small DIN accessory sockets fitted to some BMW, Ducati, Honda & Triumph motorcycles by removing the detachable red sleeve. It also fits the matching O6 & O8 accessory plug sockets.

It allows easy connection of an OptiMate to a car’s cigarette lighter socket or a motorcycle’s accessory socket. It is of particular use for any other vehicles where its very difficult to get to the battery to use the standard fused permanent lead. Note – before ordering, please check that your cigarette lighter is live when the ignition is OFF.

The accessory plug lead is wired for NEGATIVE EARTH vehicles – if you have a positive earth vehicle, it is necessary to rewire the plug accordingly – this is a simple job as screw terminals are used.


FEATURES

• Heavy duty OptiMate SE connector – mates with all standard SAE 2-pin connectors
• 8A replaceable fuse inside the connector
• Premium specification 50cm length, 5A continuous current rating, all-weather cable rating
• Rubber in-line seal protects SAE connection against dirt and water keeping the SAE connection clean

SPECIFICATION

LENGTH: 50cm
CONNECTORS: Ø21mm AUTO socket / Ø12mm BIKE DIN Plug to SAE
CABLE RATING: 18AWG (0.82mm2) SPT-2
FUSE: 8 Amp (inside connector)
USE: -40°C/-40°F low temperature use
STYLE: Includes in-line rubber seal for OptiMate heavy duty SAE connector
WARRANTY: 3-year limited replacement warranty
