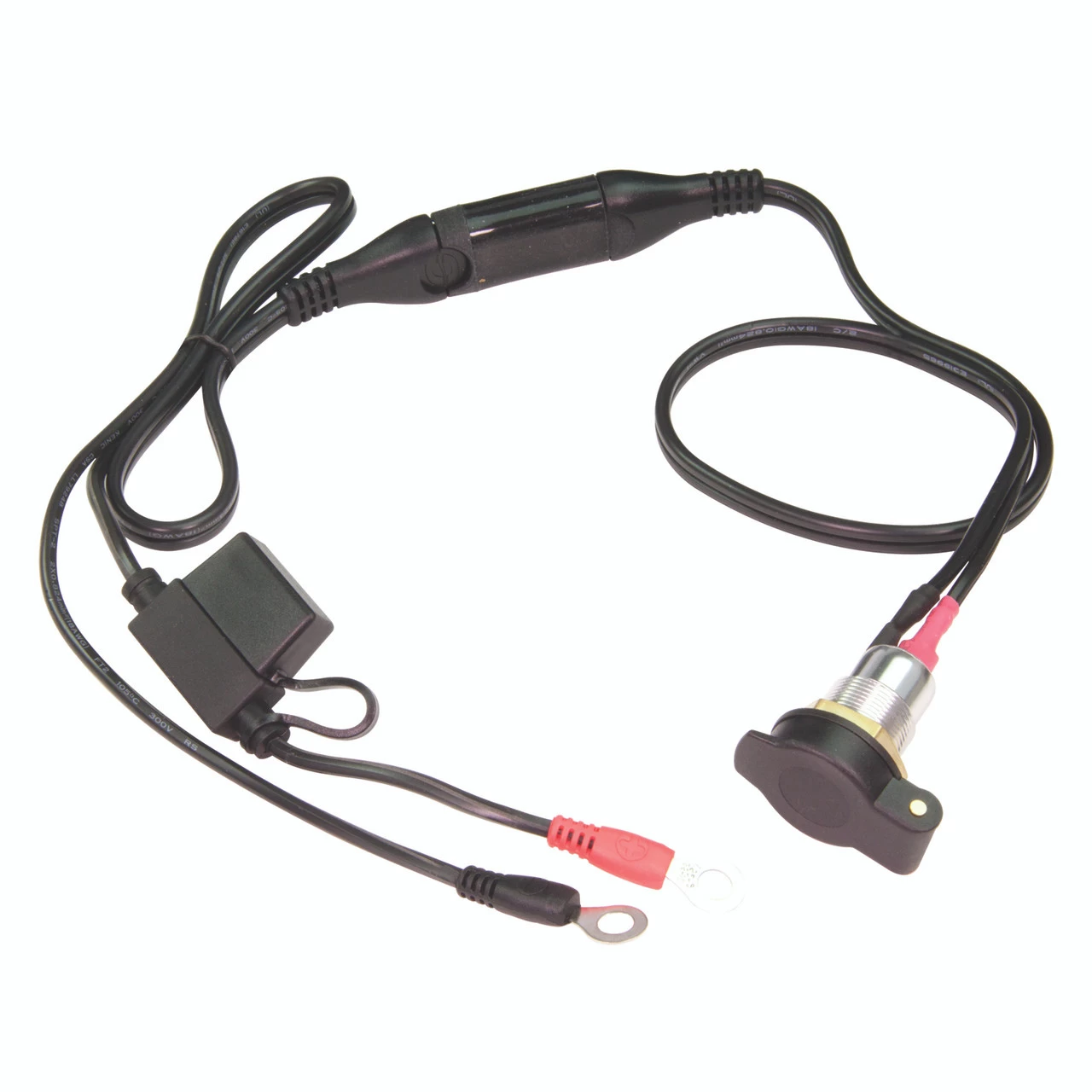

O18 DIN Panel Socket

Compact Ø12mm DIN socket with metal body &  auto close cap, same as socket on BMW, Triumph, Victory, selected Honda Gold Wing motorcycles and John Deere ATVs.

FEATURES

• Kit includes a panel mount DIN socket with lead that mates with a fused battery lead
• DIN standard connection system with positive lock – inserted plug remains connected even during severe vibration
• Works with OptiMate BIKE/DIN cable accessories, or any motorcycle DIN plug accessory
• Mounting: Socket fits into a Ø18mm (11/16”) hole on a panel or bracket
• Connecting to battery: M6 (1/4”) rings fit all powersport batteries
• Rubber in-line seal protects SAE connection
• Thicker insulation for better protection

SPECIFICATION

LENGTH: 40cm
CONNECTORS: M6 eyelets to Ø12mm DIN Metal socket
CABLE RATING: 18AWG (0.82mm2) SPT-2W
USE: -40°C/-40°F very low temperature, cable remains flexible in below freezing temperatures
STYLE: Includes permanent battery lead, in-line seals for OptiMATE heavy duty SAE connectors
WARRANTY: 3-year limited replacement warranty
