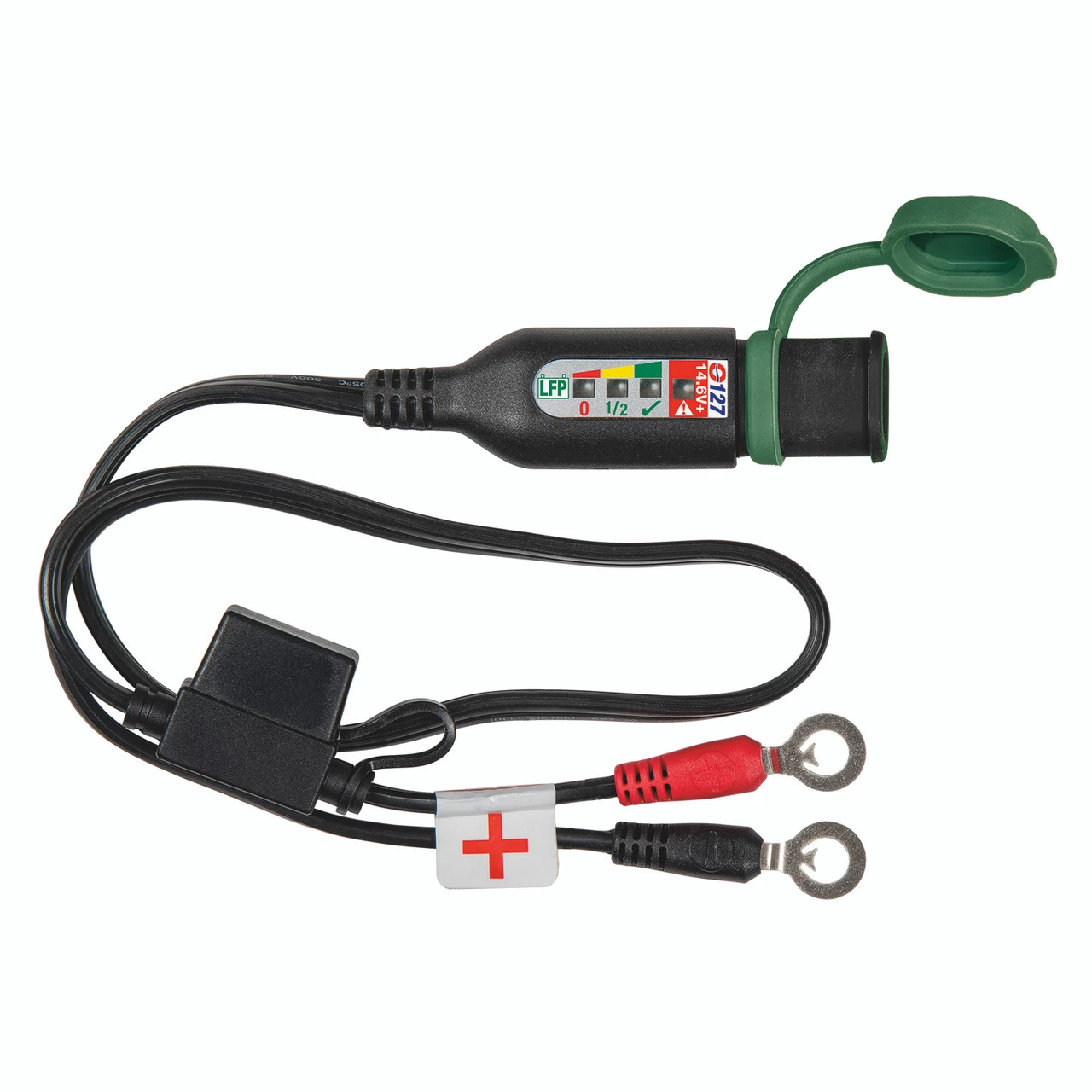

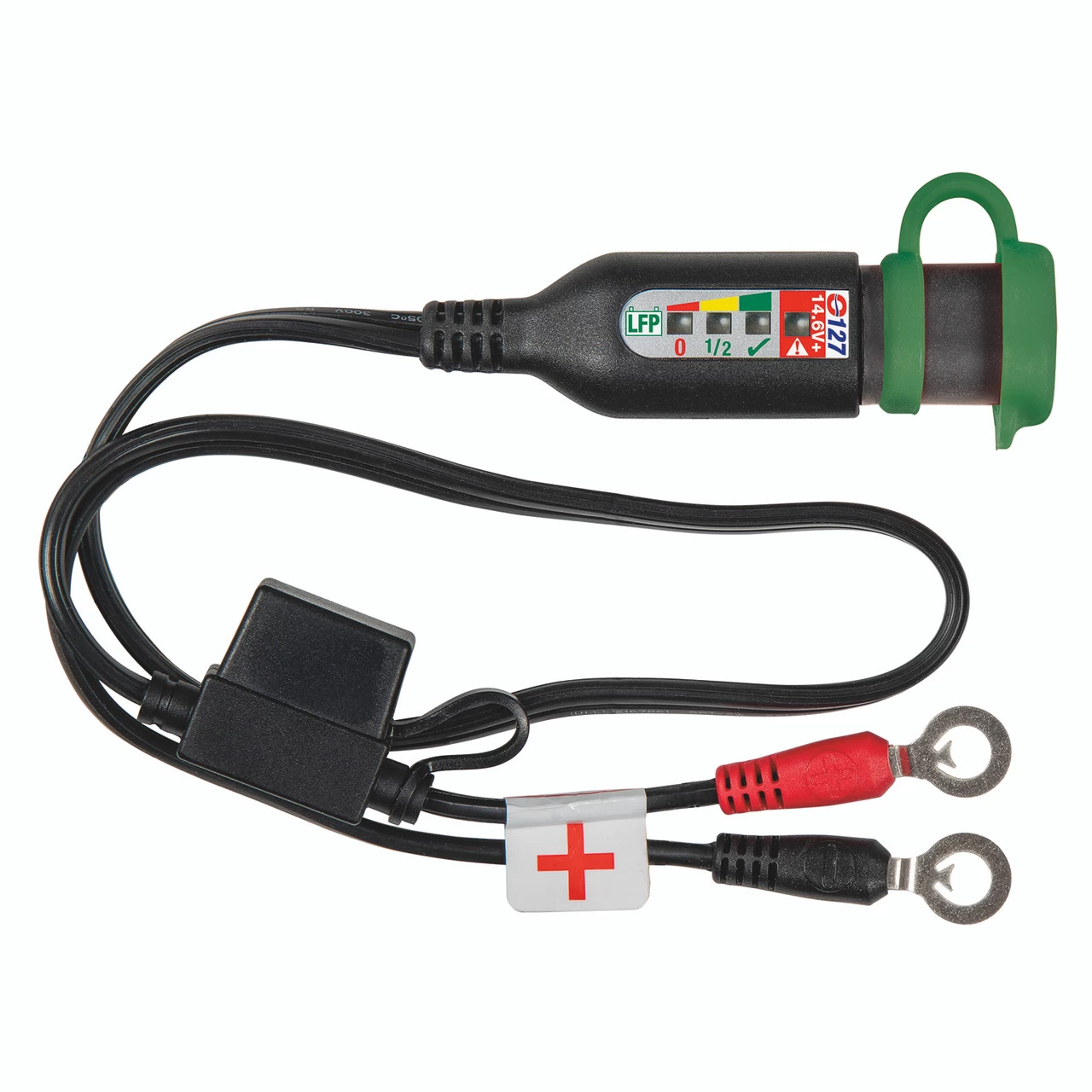

O127 Lithium Monitor – M6/M8 Eyelet

Weatherproof battery lead with state of charge monitor for the 12.8V/13.2V LifePO4 / LFP lithium battery in your parked performance vehicle.

FEATURES

• Ideal for 12.8V/13.2V LiFePO4 / LFP lithium batteries
• SAE quick connect charge port for charging battery when needed
• With weatherproof sealing cap
• Battery status indication every 3 seconds (LED blinks)
• Ideal charge range with engine running – 13.9V to 14.5 Volts
• Warning if charge voltage exceeds 14.6 Volts

Operation:
2 automatic Modes – Battery charge level monitor (single LED blink mode) & Charging system test (arrow mode)

Vehicle storage: 3 LEDs display ‘full to empty’ voltage range for 12.8V/13.2V Lithium batteries (LFP/LiFePO4/Lithium nano Phosphate); 4th LED warns when vehicle system or connected battery charger is OVERCHARGING! (long term draw less than 0.2mA)

Vehicle running: LED arrow mode activates when charge voltage reaches an effective lithium charge range of 14.2V – 14.5V (√green LED). OVERCHARGE warning activates at +14.6V

SPECIFICATION

LENGTH: 60cm
BATTERY CONNECTOR: 1/4″ (M6) / 5/16” (M8) eyelets
CHARGE CONNECTOR: 2-pin SAE, protected from dirt and liquid with rubber sealing cap and shroud
CABLE RATING: 16 AWG (1.31mm2) SPT-2W
FUSE: 15 Amp
USE: -40°C/-40°F very low temperature, remains flexible at below freezing temperatures
STYLE: Fully enclosed electronic circuitry with 4 LEDs, SAE charge connector with rubber sealing cap & shroud
WARRANTY: 3-year limited replacement warranty
