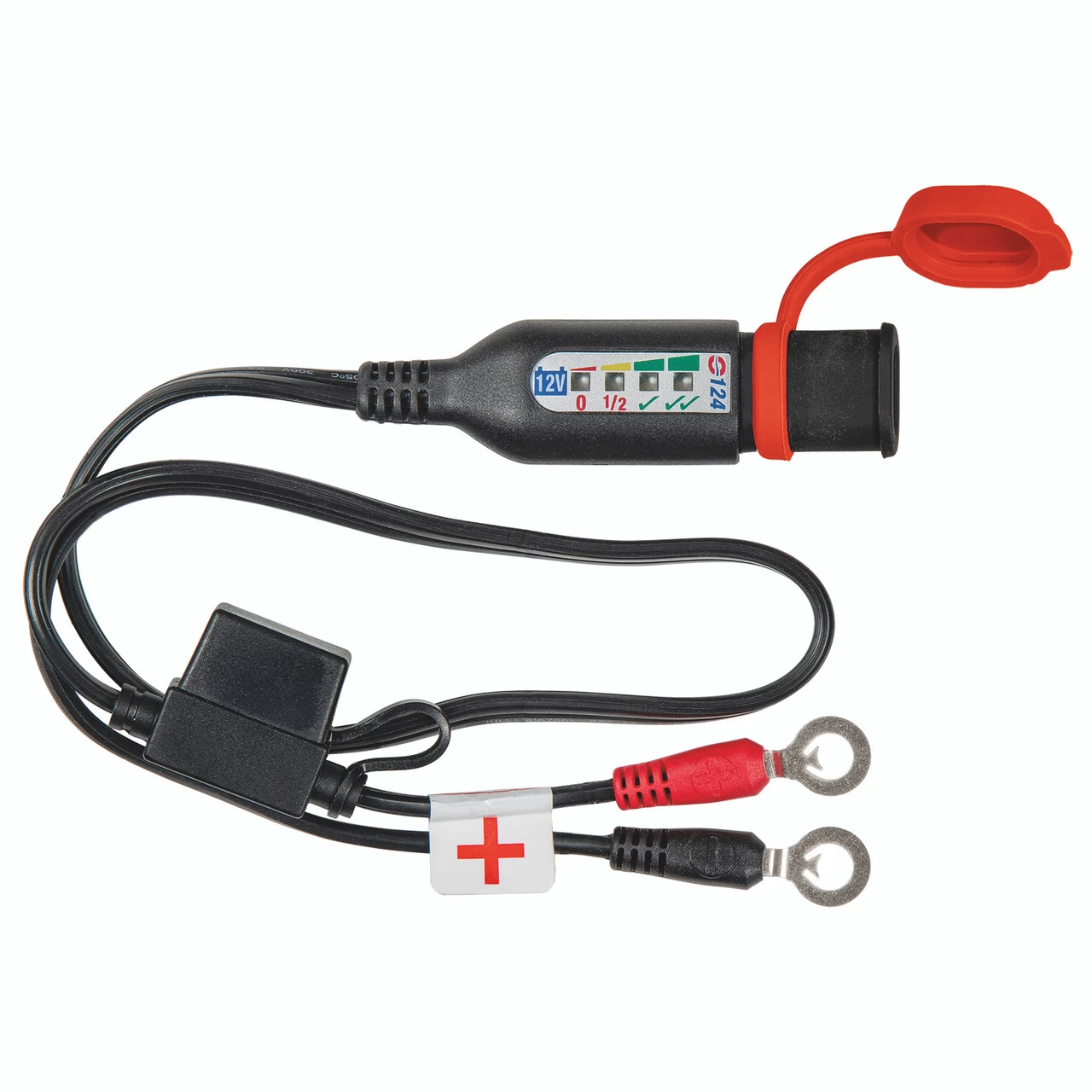

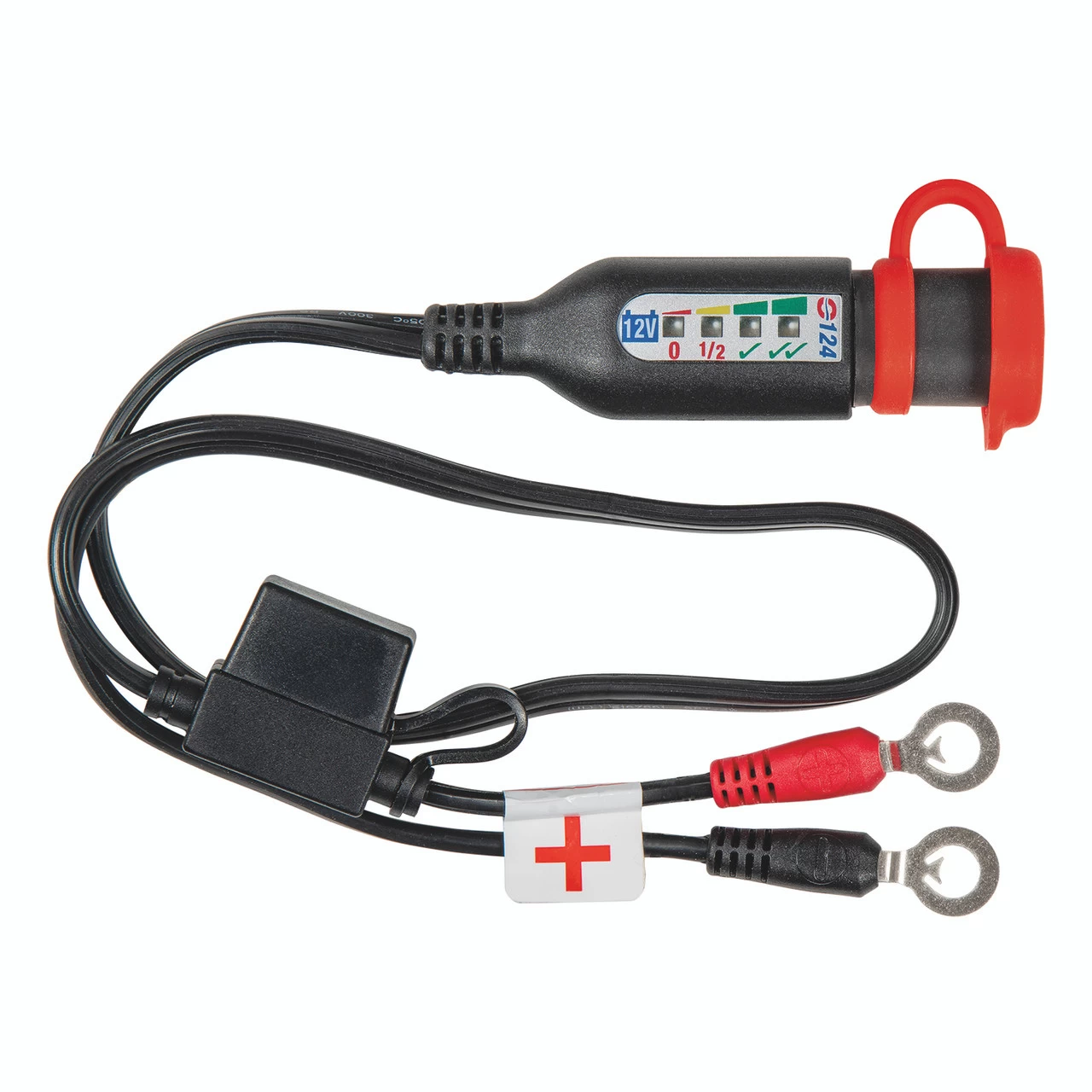

O124 Monitor – M6/M8 Eyelet

Weatherproof battery lead with state of charge monitor for the 12V lead-acid battery in your vehicle – 24/7 battery status at a blink of an LED!

FEATURES

• Ideal for 12V lead-acid batteries found in powersport vehicles
• SAE quick connect charge port for charging battery when needed
• With weatherproof sealing cap
• Battery status indication every 3 seconds (LED blinks)
• Battery status indication for high performance AGM

Operation:
2 automatic Modes – Battery charge level monitor (single LED blink mode) & Charging system test (arrow mode).

Vehicle storage: 4 LEDs cover ‘full to empty’ voltage range of all 12V batteries, including higher voltage AGM for power sport (4th √√LED ≥ 12.7V ). LED matching charge level blinks every 3  seconds (long term draw less than 0.2mA).

Vehicle running: LED arrow mode activates when charge voltage reaches ideal charging voltage; up to minimum 13.5V (√ green LED) or ideal range 14V+ (√√ green LED).

SPECIFICATION

LENGTH: 60cm
BATTERY CONNECTOR: 1/4″ (M6) / 5/16” (M8) ringlets
CHARGE CONNECTOR: 2-pin SAE, protected from dirt and liquid with rubber sealing cap and shroud.
CABLE RATING: 18AWG (0.82mm2) SPT-2W
FUSE: 15 Amp
USE: -40°C/-40°F very low temperature, remains flexible at below freezing temperatures
STYLE: Fully enclosed electronic circuitry with 4 LEDs, SAE charge connector with rubber sealing cap & shroud
WARRANTY: 3-year limited replacement warranty
