O118 USB-C Charger 3300mA

Charge your phone, GPS, camera & tablet with your weatherproof charger, on your motorcycle or up to 2m away from 12V supply connection with the OptiMate O118 USB-A and USB-C dual charger.

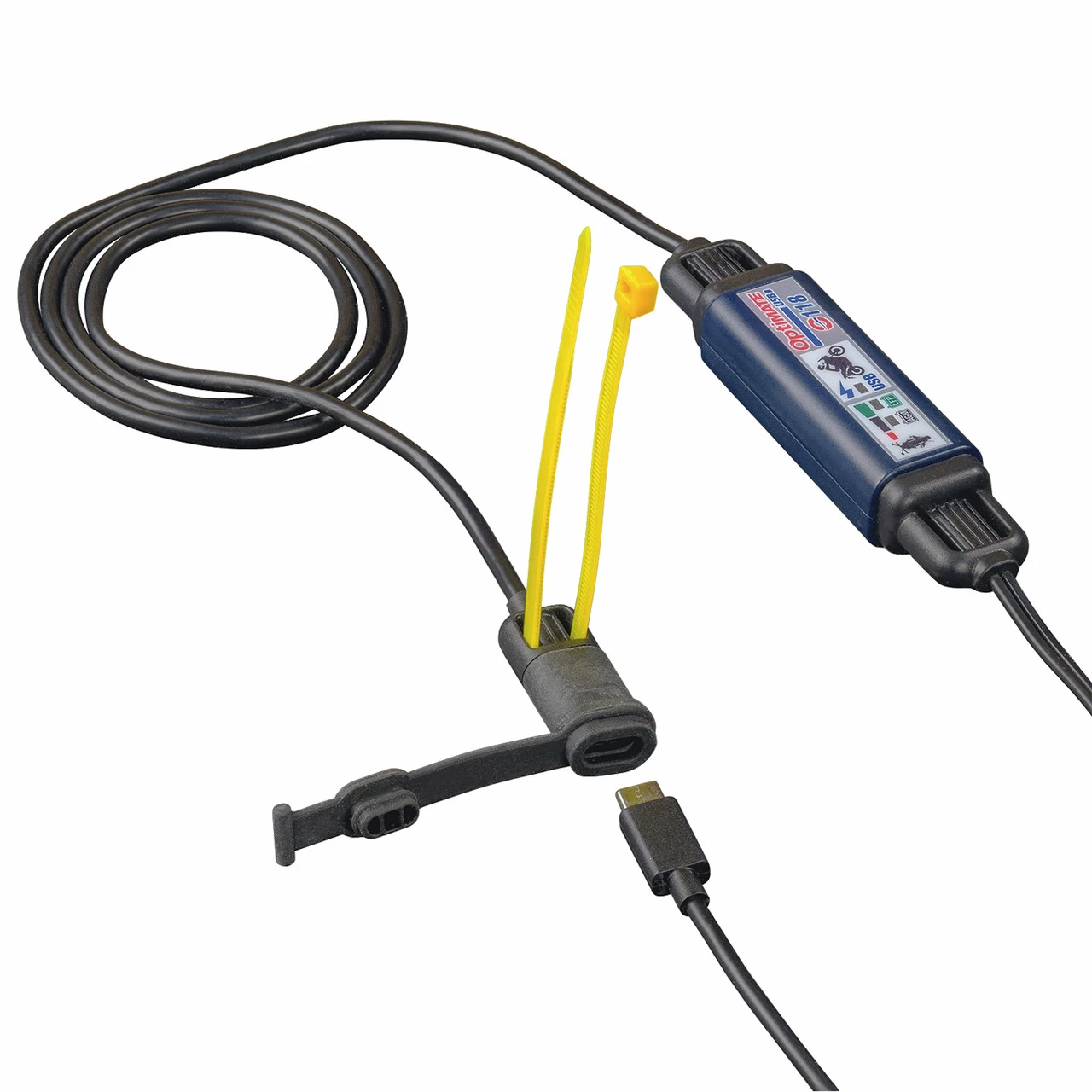

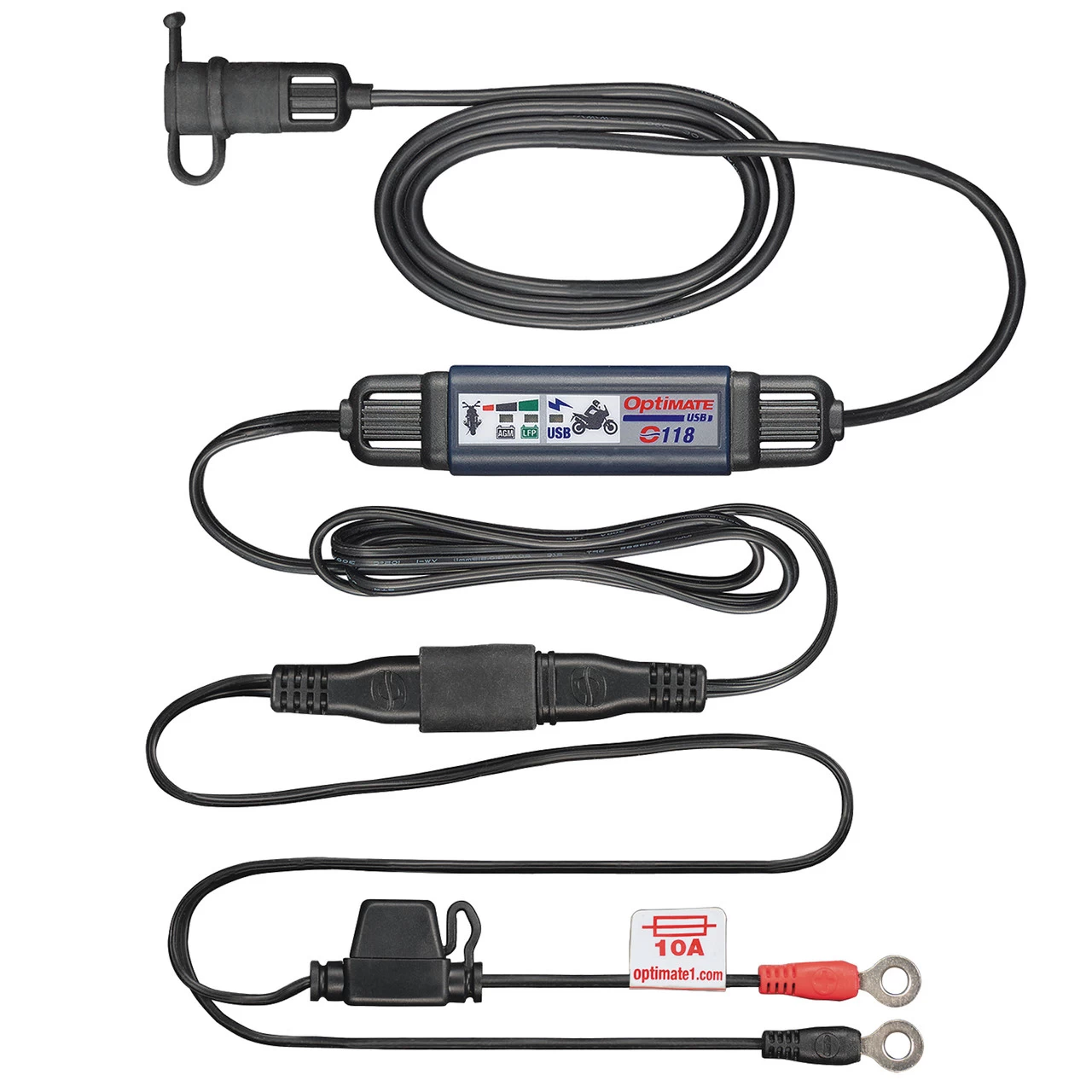

Weatherproof OptiMate USB-C charger with 2m total cable length. The sealed USB-C outlet has tabs to tie-wrap to secure in location on bike. Powerful, safe USB charger to charge USB compatible devices – e.g. mobile phones, navigation devices, MP3 players, intercoms, iPhone, iPad, digital cameras and many others. Use devices while using your car or bike, or recharge while stationary. The O118 charger will turn off if the battery is lower than 12.3V, preventing accidental battery discharge.


FEATURES

• Connects to battery lead with industry standard SAE 2-pin connector – In-line seal makes 12V connection weatherproof!
• Charges 1x USB device with up to 3300mA current available
• Weatherproof USB charge port easily zip-tie to handlebar, strut or even brake / clutch cable
• Built in protection turns off USB charging and prevents your parked vehicle’s battery from draining – Starts back up when vehicle engine fires up
• Monitors and displays parked vehicle’s battery status

LENGTH: 200cm
CHARGE CONNECTOR (INPUT): O-31 battery lead with M6 (1/4”) rings / eyelets OR 2-pin SAE (if disconnected from O-31)
CHARGE CONNECTOR (OUTPUT): 1x USB-C
POWER (OUTPUT): 3300mA @5V
POWER (INPUT): Vehicle 12V system with 12V lead-acid or 12.8V lithium battery
OPERATION:  Fully automatic
• Vehicle battery protection: Low input (<12.4V) auto-off protects vehicle battery from total discharge. Supply range: 12.4 to 16Vdc
• Turns on if vehicle battery voltage increases above 13.3V
• 2 LED battery monitor
• Short circuit, overheat, over-voltage protection. O-31 battery lead includes in-line fuse
OPERATION (Voltage):
• USB ON – 13.3V to 18V – unlimited USB output, USB LED on. Delivers USB power when vehicle engine is charging battery
• USB 1 HOUR – 12.4V to 13.3V – 1 hour USB output, USB LED on. Go to standby mode after 1 hour or voltage < 12.4V
• STANDBY MODE – Monitoring voltage, turns back on if vehicle battery voltage increases above 13.3V
• AGM / LFP MONITOR – LED blink every 5 seconds if battery charge  ≥ 50% , sufficient to start vehicle engine
• LED LFP: 13.1V to 13.3V
• LED AGM: 12.4V to 13.1V
• NO LED < 12.4V
• OFF ≤ 9V
CABLE RATING: SPT-1
USE: -20°C/-4°F very low temperature, remains flexible at ‘below freezing’ temperatures
STYLE: Fully enclosed electronic circuitry with multiple LEDs, unique seal and cap design for USB sockets ; use any USB cable, seals when inserted.
WARRANTY: 3-year limited replacement warranty

NOTE: This product is primarily designed to be used when the engine is running.
