Headlamp Aligner
Original price was: £370.00.£95.99Current price is: £95.99.
- Shop with Zero Worries
- 7 Days of Hassle-Free Returns
- Free Shipping, No Compromise on Quality
- Worry-Free Shopping with Safe Payments

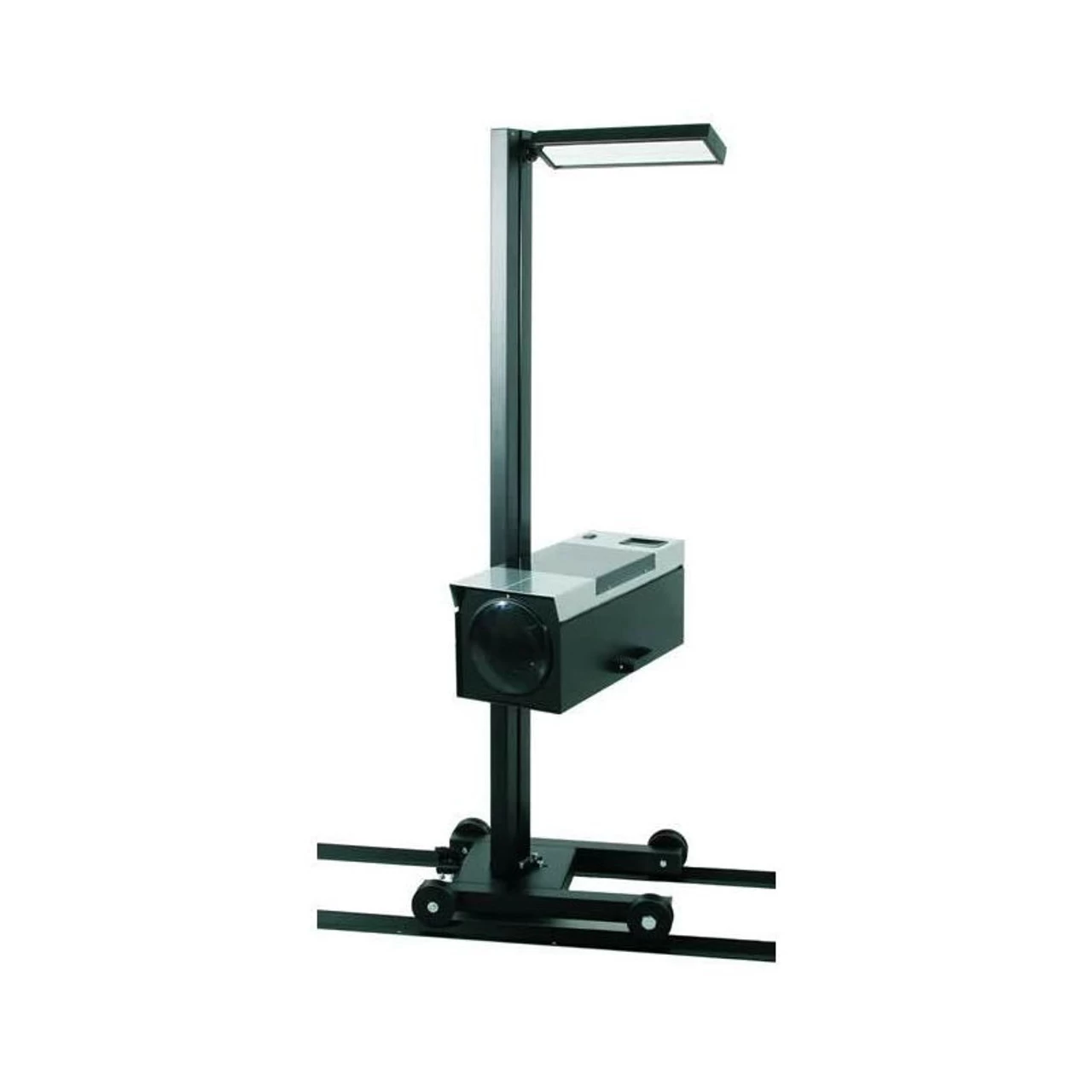

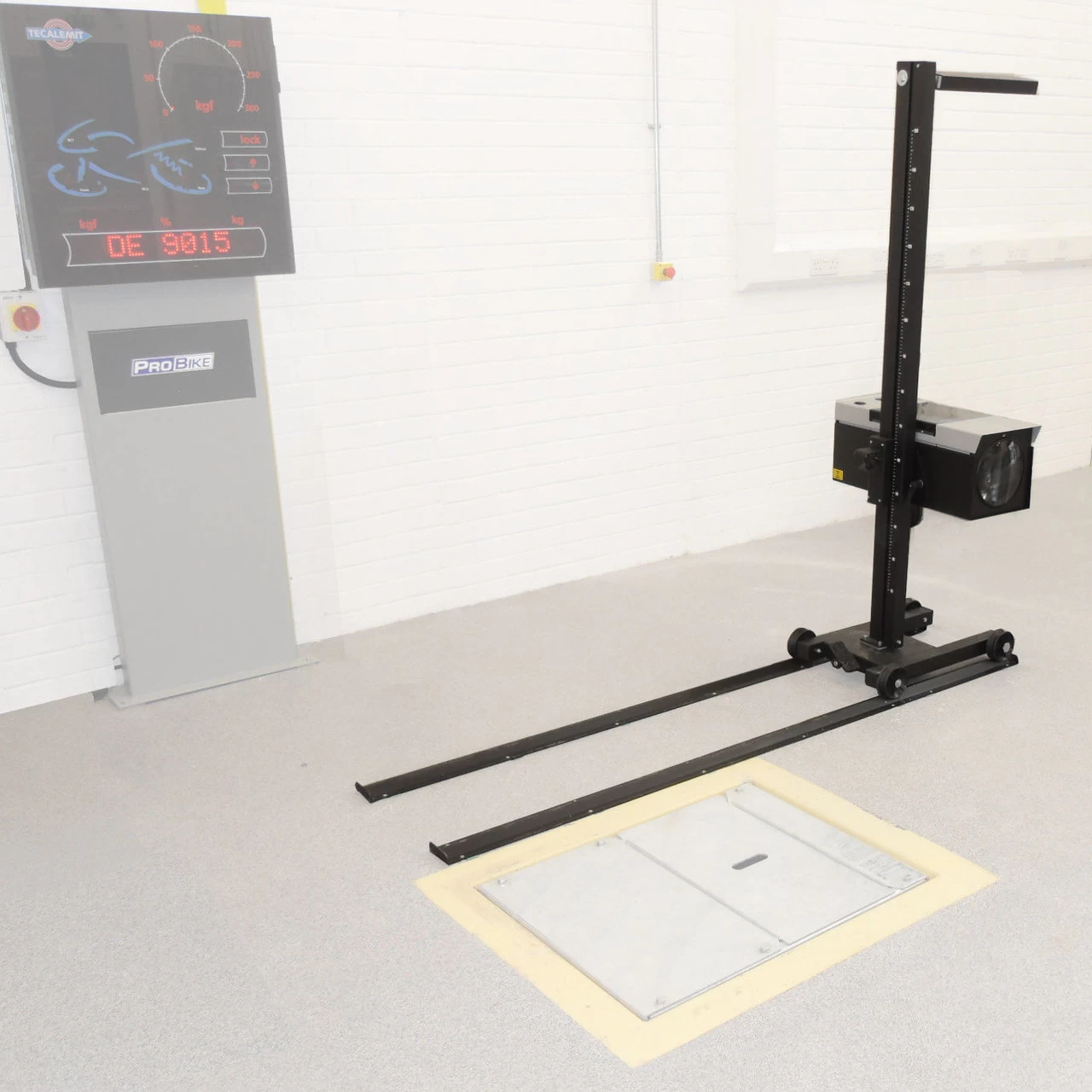

This MoT approved beam setter allows rapid and accurate checking and aligning of motorcycle headlamps. Rail mounted with a fully adjustable head to enable fast correct positioning. Features include RS232 interface, LCD display for light intensity measurement and integral laser aligner. Supplied with its own integral 12v rechargeable battery and battery charger. Meets DVSA specifications.
| Height | 1770mm |
| Length | 610mm |
| Minimum headlamp height | 240mm |
| Maximum headlamp height | 1500mm |
| Tolerance on aiming height | +/- 10mm |
| Optical box size | 250mm x 250mm x 610mm |
| Light intensity | 0-240 lux |
| Focal length | 500mm |
| Rail length | 3110mm |
| Lens to first rail | 110mm |
| Distance between rails | 395mm |
| Rail recess dimension | 100mm x 28mm |
Note: DVSA require a 600mm clearance behind the Tester head to any wall.
