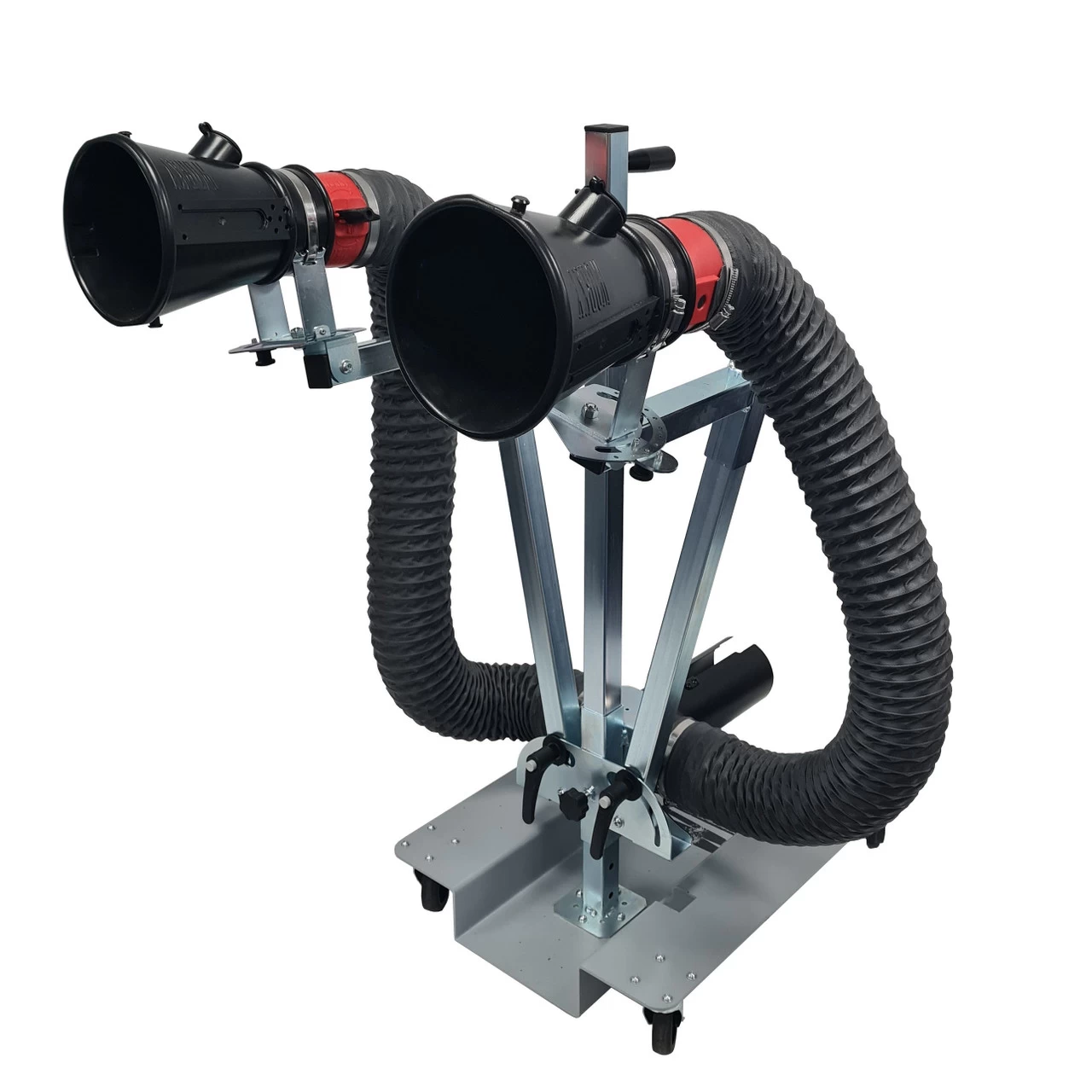

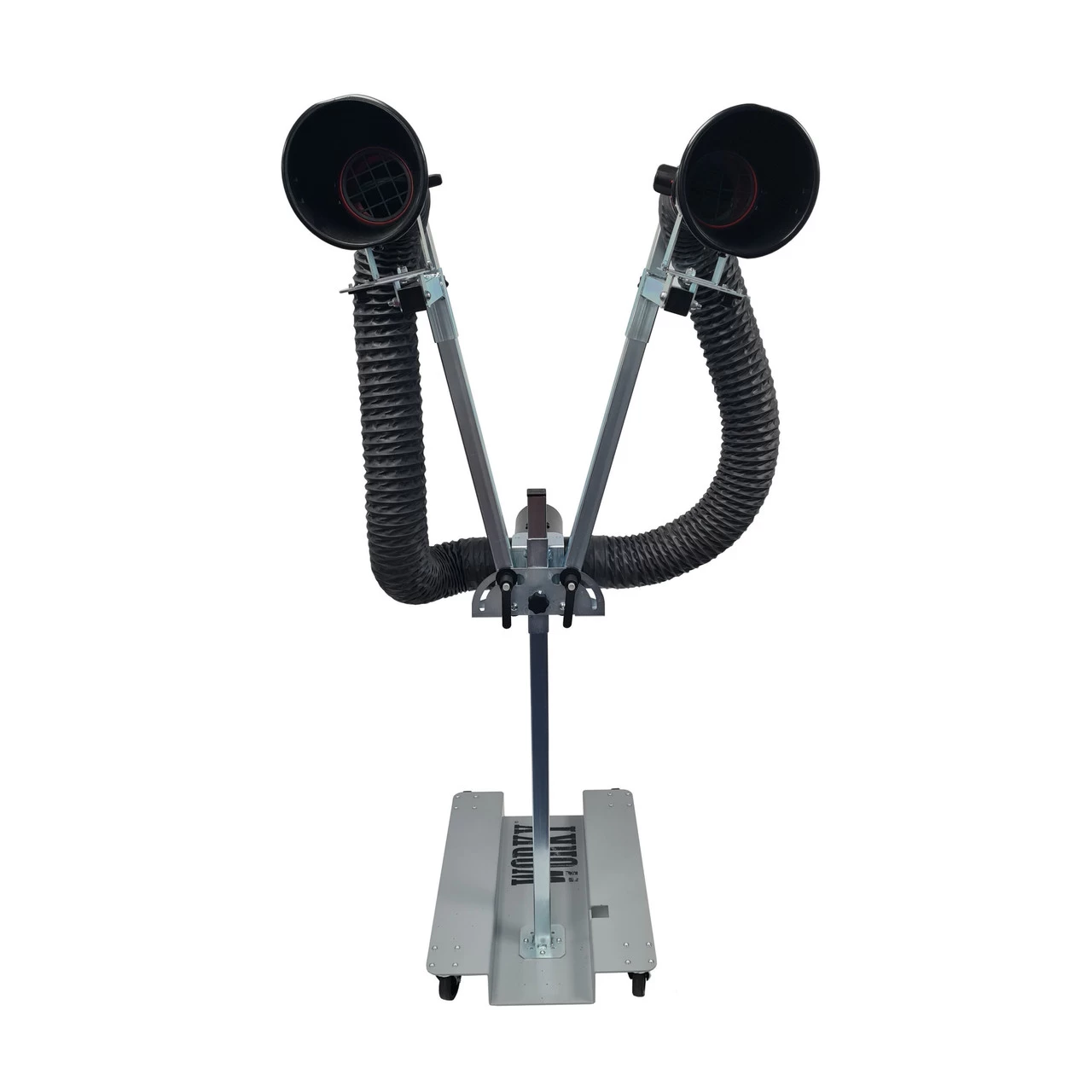

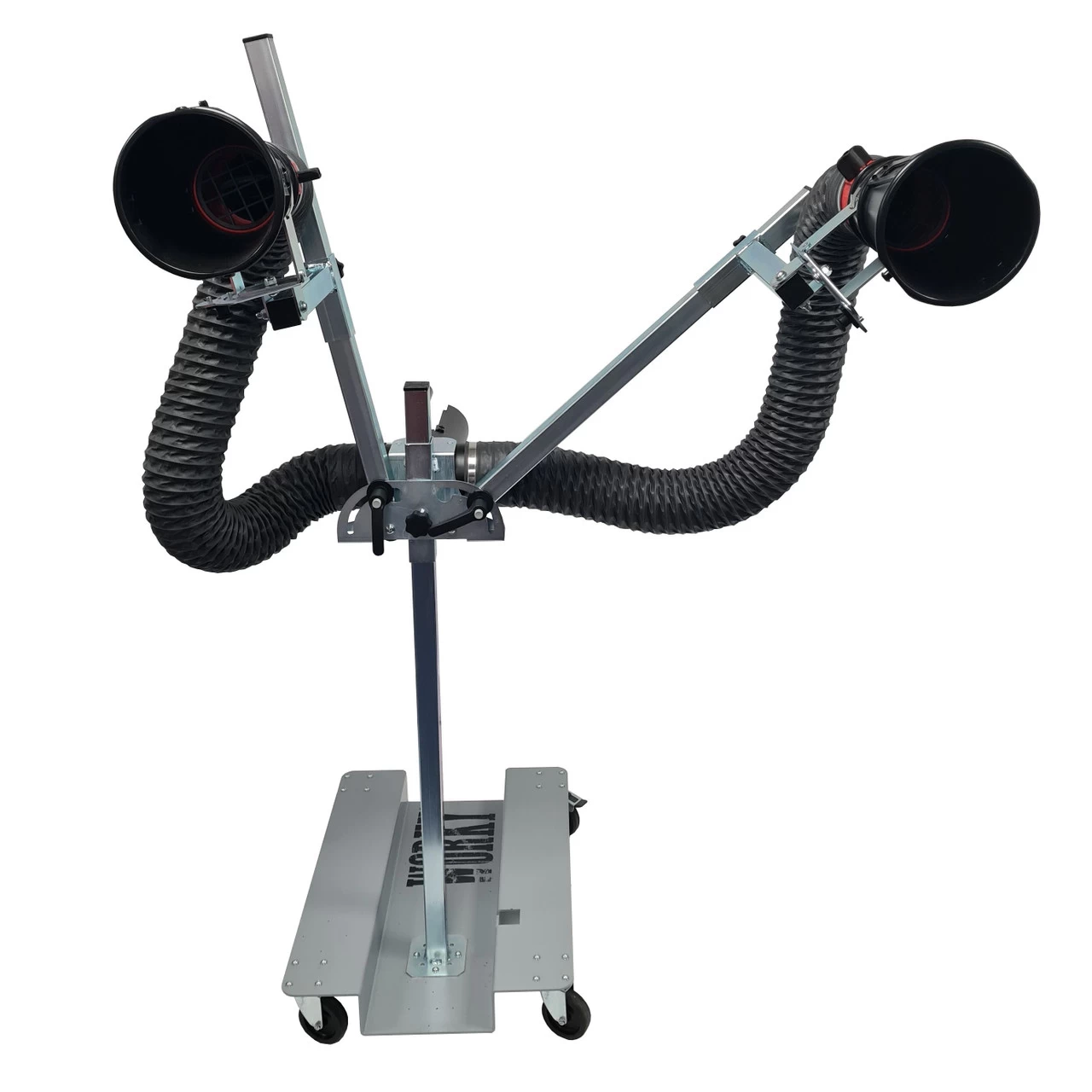

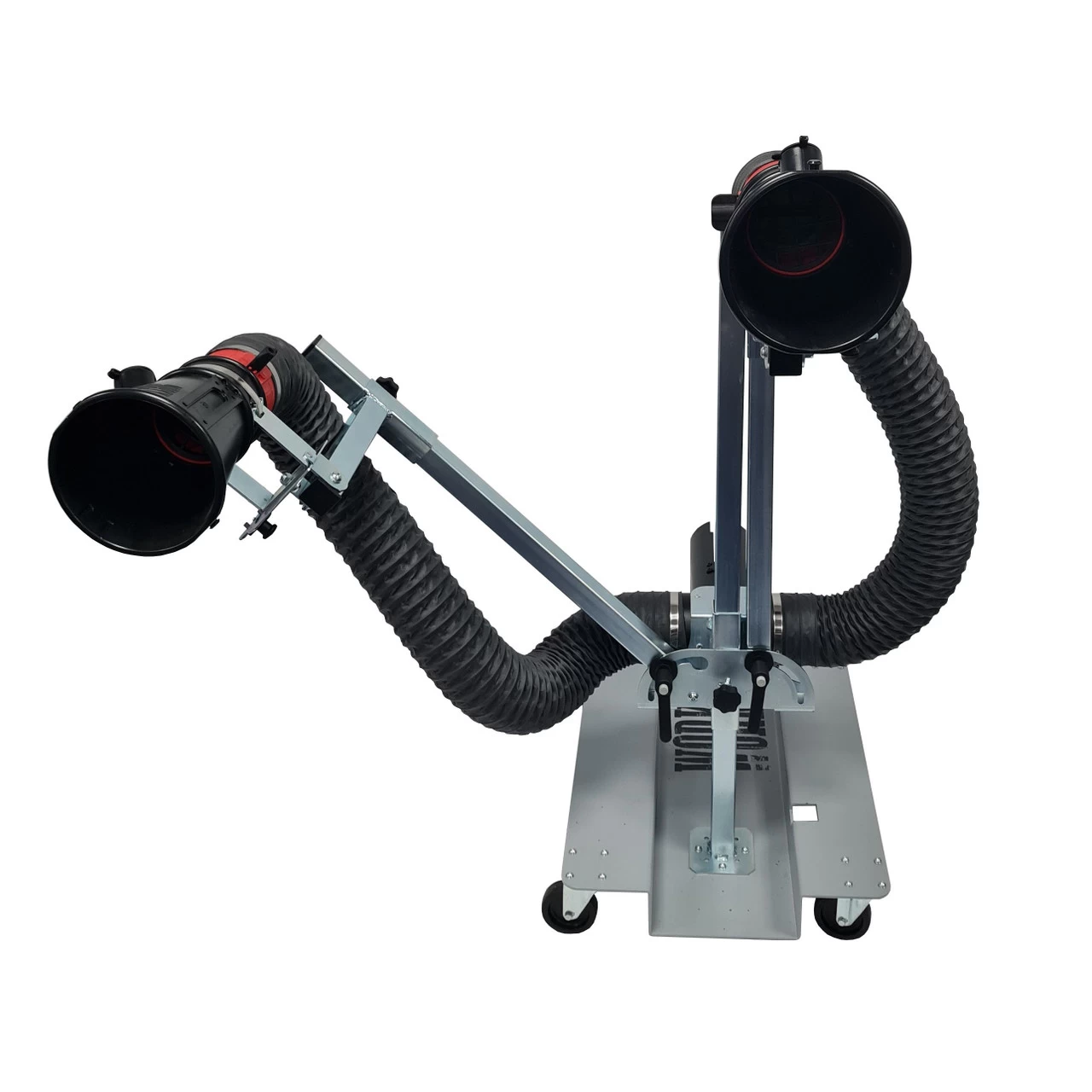

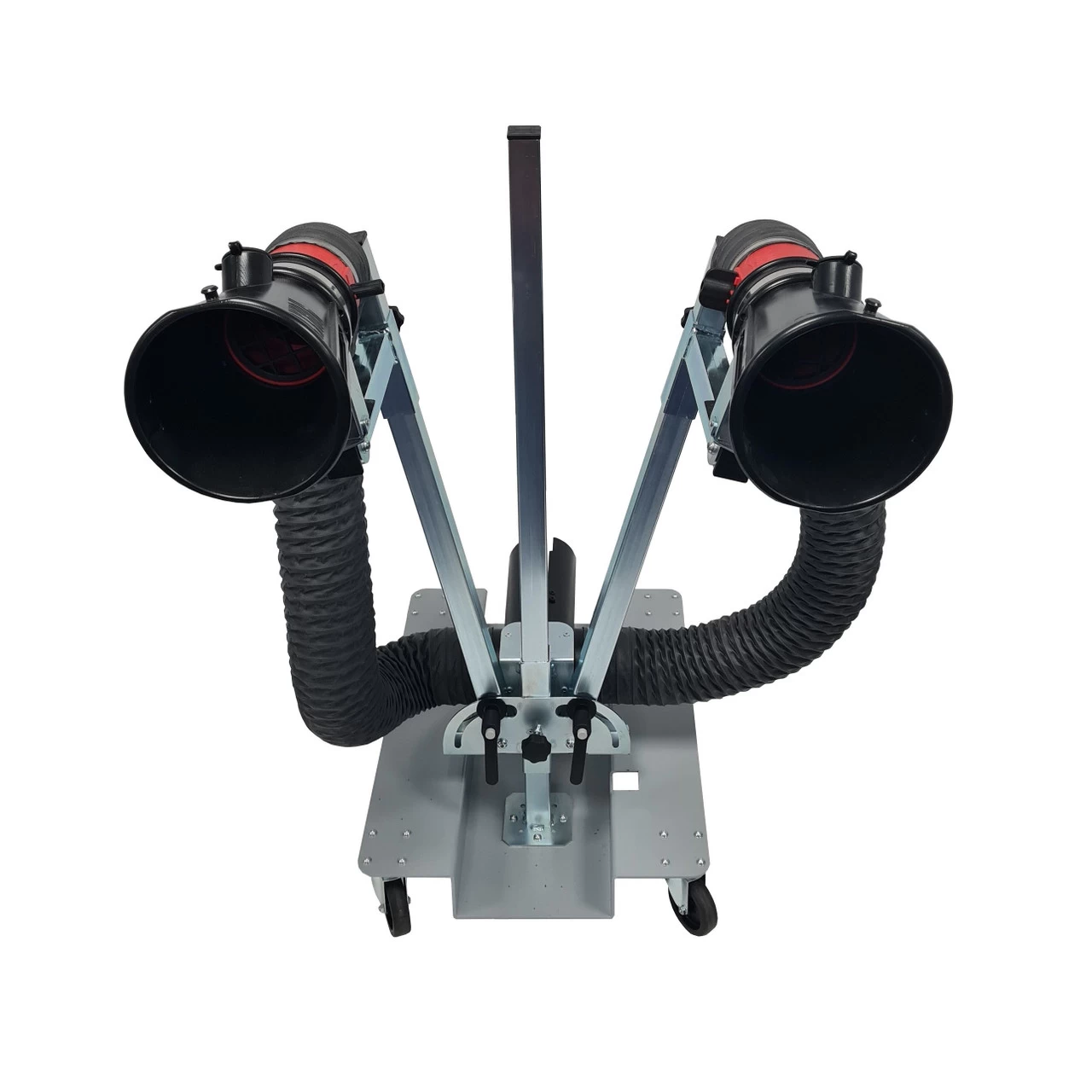

Exhaust Extraction Stand, Twin Cone

This Mobile Twin Exhaust Extraction Stand is the perfect solution to the problems faced using extraction systems with modern motorcycles and can also be used with cars. The countless exhaust configuration options on today’s bikes mean using a loose cone is not always straightforward.  Low-exit angled / flush pipes are pretty much impossible to deal with. Keeping the rubber cones out of contact with the exhaust outlets ensures zero marking or damage.

The EX02 twin magnetic stand is extremely adaptable and provides the ability to locate each cone into fixed positions. It comprises a metal base with castors for easy mobile use. It can be attached to your system either using 100mm diameter hose or by simply attaching an existing system cone to the spigot when the stand is required.

The cones are attached with swivelling lockable brackets allowing total flexibility. The sliding support arms have a huge range of movement and can be put at any height you need. The centre upright is 1m tall with a handle at the top.

The cone itself is based on our new CONE2 which incorporates a grille to prevent the extraction system consuming items it shouldn’t, like rags etc. There is also an integral damper valve so the airflow to either cone can be manually turned on or off as required.

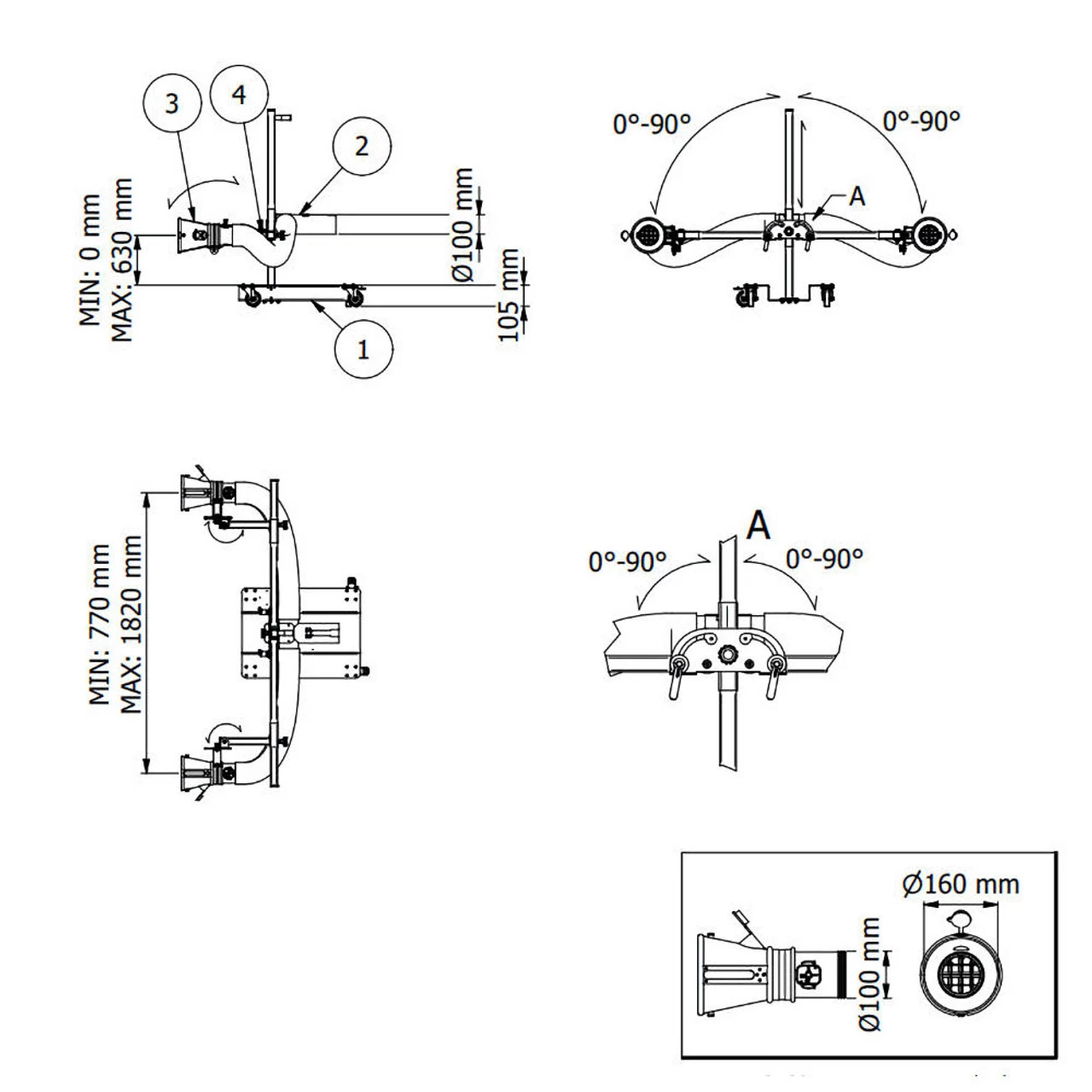

Specification

Base: 60cm x 45cm

Height (main section):  100cm

Max cone height: 175cm (approx, to centre).

Cone dimensions: 100mm hose; 160mm inlet; non-scratching

Includes: Mobile stand, 2 x cones with damper valves; 2 x 1.25m lengths of hose; Y-piece
